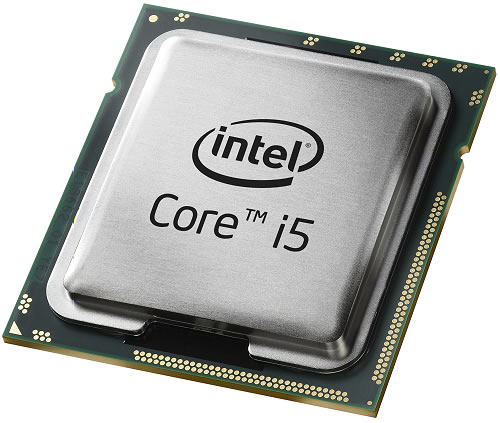

Dell i5-760 processor

2.8 GHz 8 MB Smart Cache Box

Model i5-760Part no. 1HGR8

73 specifications Checked 3 days ago

Overview

73 specifications in 7 groups

Specification	Value
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-760
Processor base frequency	2.8 GHz
Processor cores	4
Processor socket	LGA 1156 (Socket H)
Processor lithography	45 nm
Package type	Box
Component for	PC
Processor series	Intel Core i5-700 Desktop Series
Processor threads	4
System bus rate	2.5 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.33 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	95 W
VID Voltage Range	0.65 - 1.4 V
Compatible chipsets	Intel® H55 Express, Intel® H57 Express, Intel® Q57 Express
FSB Parity	No
Stepping	B1
Bus type	DMI
CPU multiplier (bus/core ratio)	21
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory channels	Dual-channel
ECC	No

Specification	Value
On-board graphics card	No

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	No
Market segment	Desktop
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
PCI Express configurations	1x16, 2x8
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
Number of Graphics & IMC Die Transistors	774 M
Supported instruction sets	SSE4.2
CPU configuration (max)	1
Embedded options available	No
Physical Address Extension (PAE)	36 bit

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel Dual Display Capable Technology	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Trusted Execution Technology	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	Yes
Intel® Wireless Display (Intel® WiDi)	No
Conflict-Free processor	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Rapid Storage Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® vPro™ Platform Eligibility	No

Specification	Value
Tcase	72.7 °C

Specification	Value
Processor package size	37.5 mm
