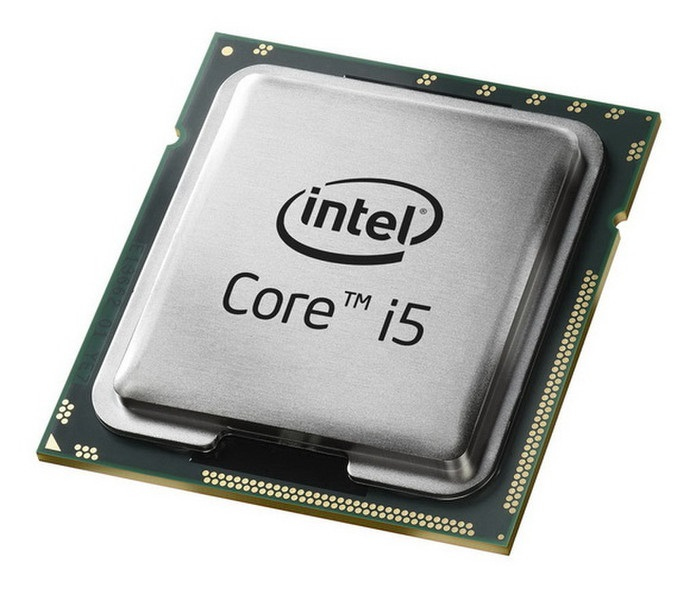

Dell i5-4200U processor
1.6 GHz 3 MB L3
Model i5-4200UPart no. I15RS52S
58 specifications Checked 3 days ago
- ProcessorIntel® Core™ i5
- Maximum internal memory supported by processor16 GB
- On-board graphics cardYes
- Tjunction100 °C
Overview
- Processor
- Intel® Core™ i5
- Maximum internal memory supported by processor
- 16 GB
- On-board graphics card
- Yes
- Tjunction
- 100 °C
- Brand
- Dell
- Category
- CPU
- Model
- i5-4200U
- Part numbers
- I15RS52S, I14RS53S
- Also known as
- DELL i5-4200U processor 1.6 GHz 3 MB L3
Specifications
58 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4200U |
| Processor base frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor socket | BGA 1168 |
| Processor lithography | 22 nm |
| Component for | PC |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 15 W |
| Compatible chipsets | Intel® HM86, Intel® HM87, Intel® QM87 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory channels | Dual-channel |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 4400 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Number of displays supported (on-board graphics) | 3 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4, 2x4 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Smart Connect Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 40 mm |
| Package depth | 24 mm |
| Package height | 1.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
