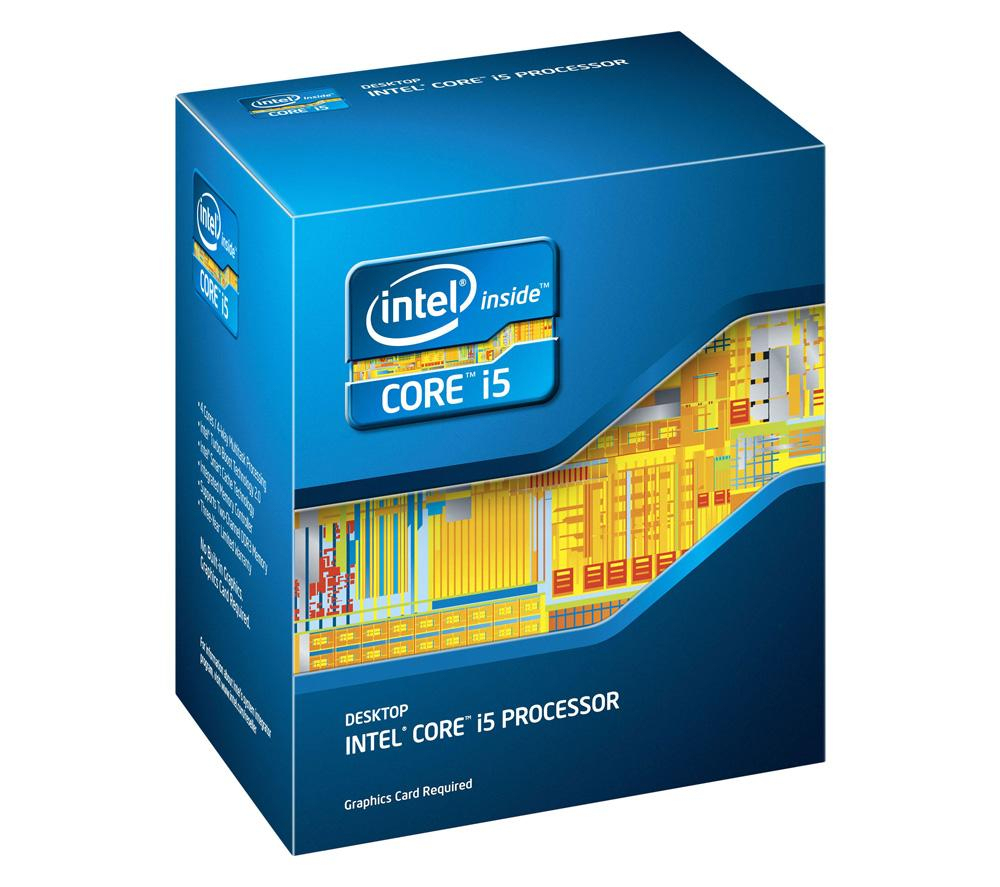

Dell i5-3470S processor
2.9 GHz 6 MB L3 Box
Model i5-3470SPart no. V270DDW851
57 specifications Checked 4 days ago
- ProcessorIntel® Core™ i5
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tcase69.1 °C
Overview
- Processor
- Intel® Core™ i5
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tcase
- 69.1 °C
- Brand
- Dell
- Category
- CPU
- Model
- i5-3470S
- Part numbers
- V270DDW851, V270DDW853, V270DDW854
- Also known as
- DELL i5-3470S processor 2.9 GHz 6 MB L3 Box
Specifications
57 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3470S |
| Processor base frequency | 2.9 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 22 nm |
| Package type | Box |
| Component for | PC |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 65 W |
| Compatible chipsets | Intel® B75 Express, Intel® H61 Express, Intel® H77 Express, Intel Q75 Express, Intel® Q77 Express, Intel® Z75 Express, Intel® Z77 Express |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 2500 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Number of displays supported (on-board graphics) | 3 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x8, 1x16, 2x4, 2x8 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 69.1 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
