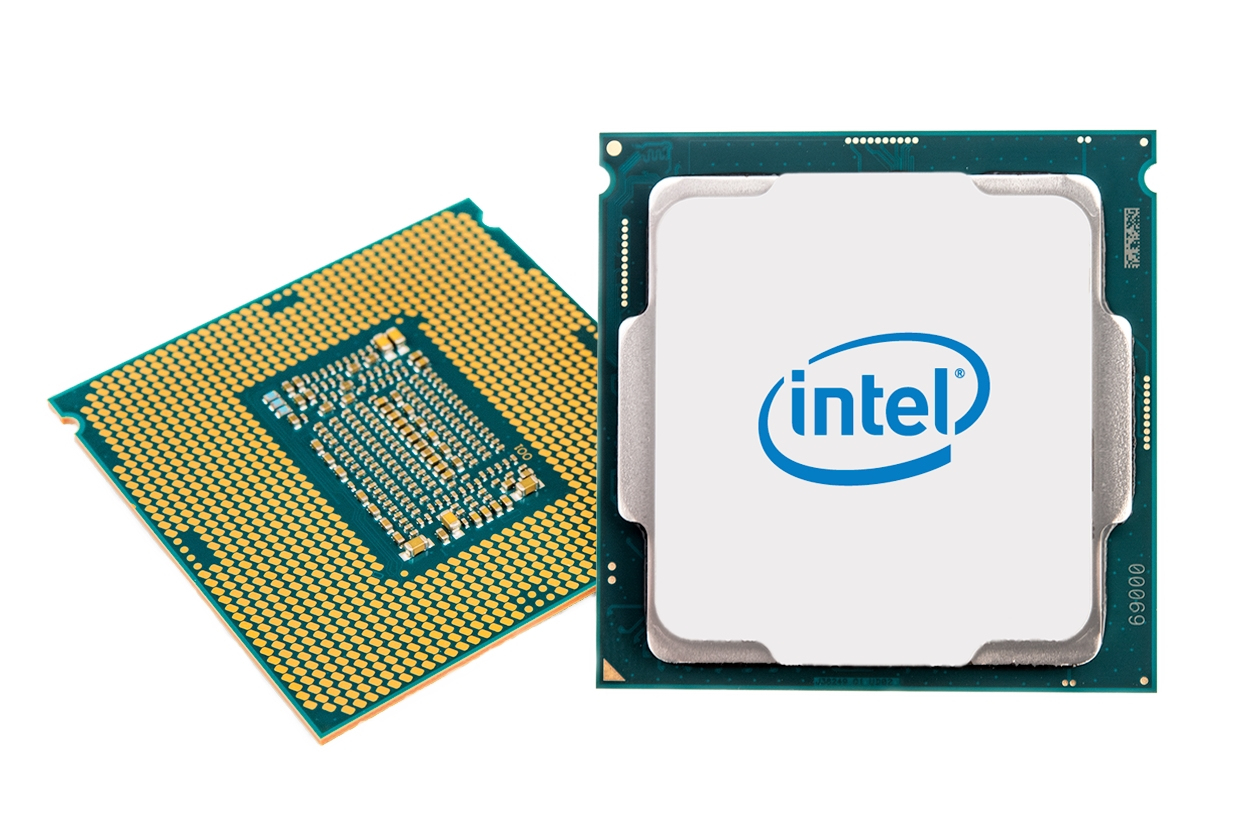

Xeon E-2236 processor
3.4 GHz 12 MB Smart Cache
Model E-2236Part no. 338-BUITEAN 5397184657614
83 specifications Checked today
- ProcessorIntel Xeon E
- GraphicsNot available
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor128 GB
- Discrete graphics cardNo
Overview
- Processor
- Intel Xeon E
- Graphics
- Not available
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 128 GB
- Discrete graphics card
- No
- Brand
- Dell
- Category
- CPU
- Model
- E-2236
- Part number
- 338-BUIT
- EAN / UPC
- 5397184657614
- Also known as
- DELL Xeon E-2236 processor 3.4 GHz 12 MB Smart Cache
Specifications
83 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2236 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 6 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Cooler included | No |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 80 W |
| Processor codename | Coffee Lake |
| Processor ARK ID | 191040 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card 4K support | No |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 4.8 GHz |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 73 °C |
| Tjunction | 100 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 70 mm |
| Package depth | 116 mm |
| Package height | 101 mm |
| Package weight | 316 g |
Technical details
| Specification | Value |
|---|---|
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Bus speed | 8 GT/s |
| Launch date | Q2'19 |
| Maximum memory | 128 GB |
| Maximum resolution & refresh rate (DisplayPort) | N/A |
| Processor ID | N/A |
| Status | Launched |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5mm x 37.5mm |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 128 GB |
| Graphics output | N/A |
