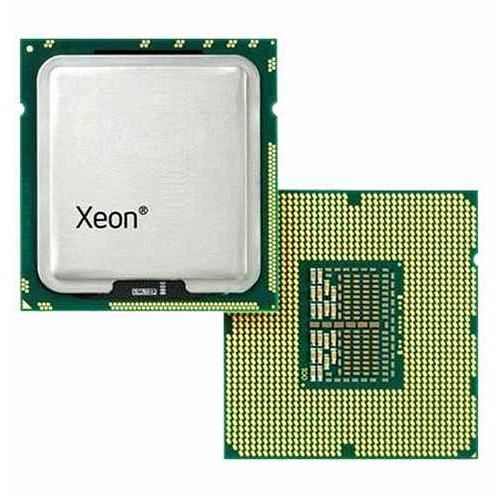

Dell 2x Intel Xeon E7-8867 v3
Model 2x Intel Xeon E7-8867 v3Part no. 338-BHDLEAN 5397063981229
53 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E7 v3
- Maximum internal memory supported by processor1.54 TB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase79 °C
- Processor package size52 x 45 mm
Overview
- Processor
- Intel® Xeon® E7 v3
- Maximum internal memory supported by processor
- 1.54 TB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 79 °C
- Processor package size
- 52 x 45 mm
- Brand
- Dell
- Category
- CPU
- Model
- 2x Intel Xeon E7-8867 v3
- Part number
- 338-BHDL
- EAN / UPC
- 5397063981229, 5711783356158
- Also known as
- DELL 2x Intel Xeon E7-8867 v3 processor 2.5 GHz 45 MB
Specifications
53 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E7 v3 |
| Processor model | E7-8867V3 |
| Processor base frequency | 2.5 GHz |
| Processor cores | 16 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E7-8800 v3 |
| Processor threads | 32 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 45 MB |
| Thermal Design Power (TDP) | 165 W |
| Stepping | E0 |
| Bus type | QPI |
| Number of QPI links | 3 |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Processor codename | Haswell |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.54 TB |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600,1866 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 8 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | S8S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Instruction Replay Technology | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 79 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52 x 45 mm |
