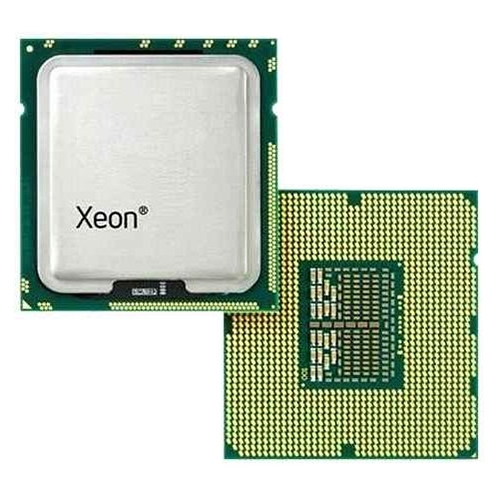

Dell 2x Intel Xeon E5-4667 V3
Model 2x Intel Xeon E5-4667 V3Part no. 338-BHHLEAN 5397063830374
54 specifications Checked 4 days ago
- ProcessorIntel Xeon E5 v3
- Maximum internal memory supported by processor768 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase87.6 °C
- Processor package size52.5 x 51 mm
Overview
- Processor
- Intel Xeon E5 v3
- Maximum internal memory supported by processor
- 768 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 87.6 °C
- Processor package size
- 52.5 x 51 mm
- Brand
- Dell
- Category
- CPU
- Model
- 2x Intel Xeon E5-4667 V3
- Part number
- 338-BHHL
- EAN / UPC
- 5397063830374
- Also known as
- DELL 2x Intel Xeon E5-4667 V3 processor 2 GHz 40 MB Smart Cache
Specifications
54 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-4667V3 |
| Processor base frequency | 2 GHz |
| Processor cores | 16 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-4600 v3 |
| Processor threads | 32 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.9 GHz |
| Processor cache | 40 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 135 W |
| Stepping | C1 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 68 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 4 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | 4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Instruction Replay Technology | No |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 87.6 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52.5 x 51 mm |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 2 |
