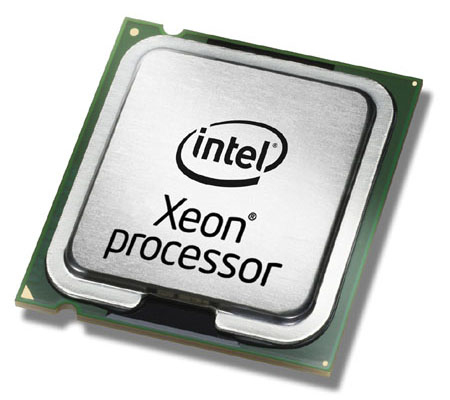

Acer Intel Xeon X3450
Model Intel Xeon X3450Part no. KC.34501.XLXEAN 4054318255658
51 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 3000 Sequence
- Maximum internal memory supported by processor32 GB
- Execute Disable BitYes
- Tcase72.7 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Maximum internal memory supported by processor
- 32 GB
- Execute Disable Bit
- Yes
- Tcase
- 72.7 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Xeon X3450
- Part number
- KC.34501.XLX
- EAN / UPC
- 4054318255658
- Also known as
- Acer Intel Xeon X3450 processor 2.66 GHz 8 MB L3 Tray
Specifications
51 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | X3450 |
| Processor base frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1156 (Socket H) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| L3 cache speed | 2.66 GHz |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6500 - 1.4000 V |
| Compatible chipsets | Intel® 3400, Intel® 3420, Intel® 3450 |
| Stepping | B1 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Processor code | SLBLD |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 1 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 4x4 |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| Supported instruction sets | SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Graphics & IMC lithography | 45 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 72.7 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
