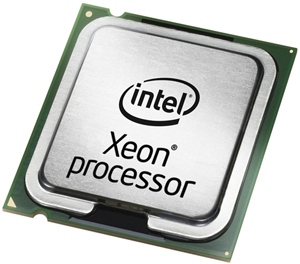

Acer Intel Xeon L5630 2.13 GHz
Model Intel Xeon L5630 2.13 GHzPart no. TC.32500.026EAN 884483882717
24 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- Market segmentServer
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- Market segment
- Server
- Brand
- Acer
- Category
- CPU
- Model
- Intel Xeon L5630 2.13 GHz
- Part number
- TC.32500.026
- EAN / UPC
- 884483882717, 8844838827178
- Also known as
- Acer Intel Xeon L5630 2.13 GHz processor 12 MB L3
Specifications
24 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5630 |
| Processor base frequency | 2.13 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 40 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Stepping | B1 |
| CPU multiplier (bus/core ratio) | 16 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Processor system type | DP |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Other features
| Specification | Value |
|---|---|
| Temperature (max) | 63.1 °C |
