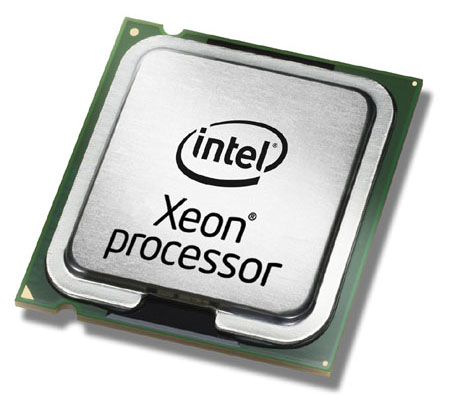

Acer Intel Xeon E5205
Model Intel Xeon E5205Part no. KC.52001.DPE
26 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase66 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 66 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Xeon E5205
- Part numbers
- KC.52001.DPE, KC.52001.EDP
- Also known as
- Acer Intel Xeon E5205 processor 1.86 GHz 6 MB L2 Tray
Specifications
26 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5205 |
| Processor base frequency | 1.86 GHz |
| Processor cores | 2 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor operating modes | 64-bit |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| L2 cache speed | 1.86 GHz |
| Processor front side bus | 1066 MHz |
| Thermal Design Power (TDP) | 65 W |
| VID Voltage Range | 0.950 - 1.212 V |
| Compatible chipsets | Intel® 5000P, Intel® 5000V, Intel® 5000X, Intel® 5100, Intel® 5400 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 66 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
