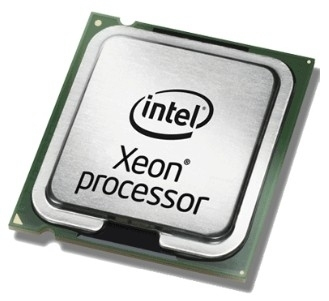

Acer Intel Xeon E3120
Model Intel Xeon E3120Part no. KC.31201.EUP
30 specifications Checked 6 days ago
- ProcessorIntel® Xeon® 3000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase72.4 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 72.4 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Xeon E3120
- Part number
- KC.31201.EUP
- Also known as
- Acer Intel Xeon E3120 processor 3.16 GHz 6 MB L2 Tray
Specifications
30 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | E3120 |
| Processor base frequency | 3.16 GHz |
| Processor cores | 2 |
| Processor socket | LGA 775 (Socket T) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 2 |
| Processor operating modes | 64-bit |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| L2 cache speed | 3.16 GHz |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 65 W |
| VID Voltage Range | 1.3625 - 1.3625 V |
| Stepping | E0 |
| CPU multiplier (bus/core ratio) | 9.5 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 72.4 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
