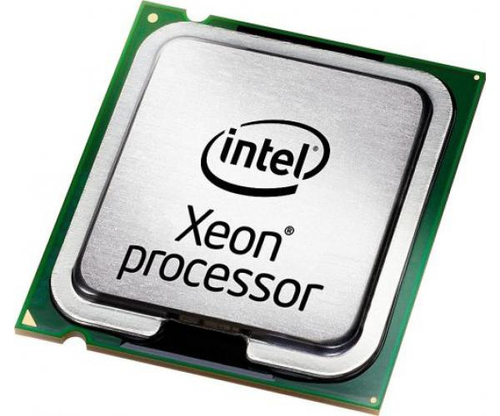

Acer Intel Xeon E3-1230
Model Intel Xeon E3-1230Part no. KC.12301.XE3
47 specifications Checked 4 days ago
- ProcessorIntel® Xeon® E3 Family
- Maximum internal memory supported by processor32 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase69.1 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® E3 Family
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 69.1 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Xeon E3-1230
- Part number
- KC.12301.XE3
- Also known as
- Acer Intel Xeon E3-1230 processor 3.2 GHz 8 MB L3 Tray
Specifications
47 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1230 |
| Processor base frequency | 3.2 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| L3 cache speed | 3.2 GHz |
| Thermal Design Power (TDP) | 80 W |
| Stepping | D2 |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 32 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 2 |
| PCI Express slots version | 2.0 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
Processor special features
| Specification | Value |
|---|---|
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 69.1 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
