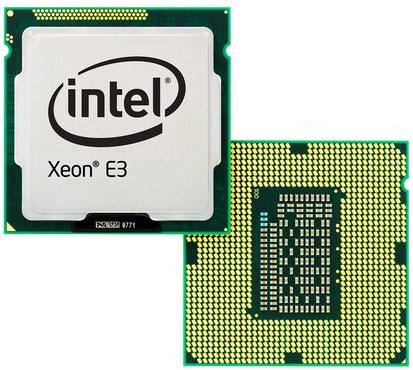

Acer Intel Xeon E3-1225
Model Intel Xeon E3-1225Part no. KC.22501.E31
59 specifications Checked 4 days ago
- ProcessorIntel® Xeon® E3 Family
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tcase72.6 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® E3 Family
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tcase
- 72.6 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Xeon E3-1225
- Part number
- KC.22501.E31
- Also known as
- Acer Intel Xeon E3-1225 processor 3.1 GHz 6 MB L3 Tray
Specifications
59 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1225 |
| Processor base frequency | 3.1 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 6 MB |
| Processor cache type | L3 |
| L3 cache speed | 3.1 GHz |
| Thermal Design Power (TDP) | 95 W |
| Compatible chipsets | Intel® C206 |
| Stepping | D2 |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics P3000 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1350 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 2 |
| PCI Express slots version | 2.0 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 72.6 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
