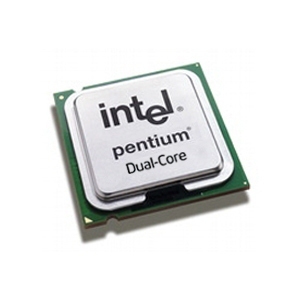

Acer Intel Pentium P6300
Model Intel Pentium P6300Part no. KC.63001.DPP
52 specifications Checked 7 days ago
- ProcessorIntel® Pentium®
- Maximum internal memory supported by processor8 GB
- On-board graphics cardYes
- Tjunction90 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Pentium®
- Maximum internal memory supported by processor
- 8 GB
- On-board graphics card
- Yes
- Tjunction
- 90 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Pentium P6300
- Part number
- KC.63001.DPP
- Also known as
- Acer Intel Pentium P6300 processor 2.27 GHz 3 MB L3 Tray
Specifications
52 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® |
| Processor model | P6300 |
| Processor base frequency | 2.27 GHz |
| Processor cores | 2 |
| Processor socket | PGA988 |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Laptop |
| Processor threads | 2 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| L3 cache speed | 2.27 GHz |
| Thermal Design Power (TDP) | 35 W |
| Compatible chipsets | Intel® HM55 Express, Intel® HM57 Express |
| Stepping | K0 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 17.1 GB/s |
| Processor code | SLBU8 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 667 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Mobile |
| Maximum number of PCI Express lanes | 1 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16 |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| Number of Graphics & IMC Die Transistors | 177 M |
| Graphics & IMC Die Size | 114 mm² |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 45 nm |
| Physical Address Extension (PAE) | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Smart Cache | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 90 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
