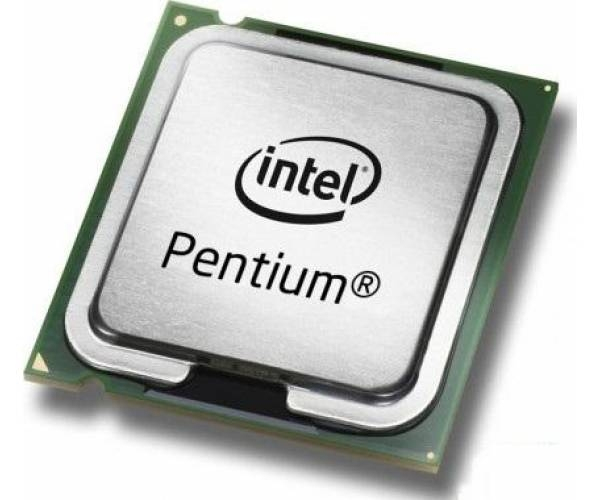

Acer Intel Pentium G2020
Model Intel Pentium G2020Part no. KC.20201.DEG
44 specifications Checked 5 days ago
- ProcessorIntel® Pentium®
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Processor package size37.5 mm
Overview
- Processor
- Intel® Pentium®
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Pentium G2020
- Part number
- KC.20201.DEG
- Also known as
- Acer Intel Pentium G2020 processor 2.9 GHz 3 MB L3 Tray
Specifications
44 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® |
| Processor model | G2020 |
| Processor base frequency | 2.9 GHz |
| Processor cores | 2 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 22 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 2 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| L3 cache speed | 2.9 GHz |
| Thermal Design Power (TDP) | 55 W |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Number of displays supported (on-board graphics) | 3 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 22 nm |
| Thermal solution specification | PCG 2011C |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Smart Cache | Yes |
| Conflict-Free processor | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
