Acer Intel Pentium E6800
Model Intel Pentium E6800Part no. KC.68001.DEM
33 specifications Checked 4 days ago
- ProcessorIntel® Pentium®
- Execute Disable BitYes
- Tcase74.1 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Pentium®
- Execute Disable Bit
- Yes
- Tcase
- 74.1 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Pentium E6800
- Part number
- KC.68001.DEM
- Also known as
- Acer Intel Pentium E6800 processor 3.33 GHz 2 MB L3 Tray
Specifications
33 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® |
| Processor model | E6800 |
| Processor base frequency | 3.33 GHz |
| Processor cores | 2 |
| Processor socket | LGA 775 (Socket T) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | PC |
| Processor operating modes | 64-bit |
| Processor cache | 2 MB |
| Processor cache type | L3 |
| L3 cache speed | 3.33 GHz |
| Processor front side bus | 1066 MHz |
| Thermal Design Power (TDP) | 65 W |
| VID Voltage Range | 0.8500 - 1.3625 V |
| Compatible chipsets | Intel® G31 Express, Intel® G33 Express, Intel® G35 Express, Intel® G41 Express, Intel® G43 Express, Intel® G45 Express, Intel® P31 Express, Intel® P35 Express, Intel® P43 Express, Intel® P45 Express, Intel® Q33 Express, Intel® Q35 Express, Intel® Q43 Express, Intel® Q45 Express, Intel® X38 Express, |
| Stepping | R0 |
| Processor code | SLGUE |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| Number of Processing Die Transistors | 228 M |
| Processing Die size | 82 mm² |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 45 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 74.1 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
What people say
Reviews & ratings
Acer Intel Pentium E6800
No reviews yet
Be the first to tell others how Acer Intel Pentium E6800 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Acer Intel Pentium E6800
All cpu comparisons- Acer Intel Pentium E6800 vsAcer Intel Core i5-661Compare specs
- Acer Intel Pentium E6800 vsAcer Intel Core i3-560Compare specs
- Acer Intel Pentium E6800 vsAcer Intel Celeron B800Compare specs
- Acer Intel Pentium E6800 vsAcer Intel Pentium E5800Compare specs
- Acer Intel Pentium E6800 vsDell i7-740QM processorCompare specs
- Acer Intel Pentium E6800 vsFujitsu Xeon E5-2420 6C/12T 1.9GHzCompare specs
- Acer Intel Pentium E6800 vsHP Intel Core i7-4765TCompare specs
Similar products
All cpus
Fujitsu

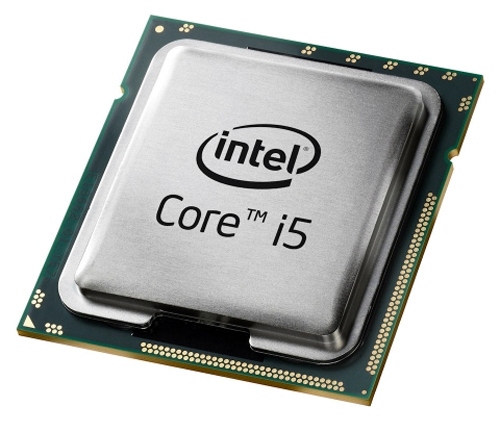

Core i5-7200U processor
