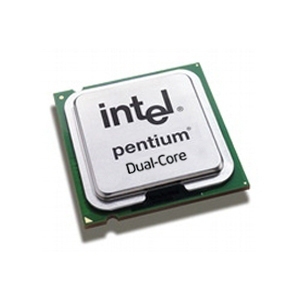

Acer Intel Pentium B940
Model Intel Pentium B940Part no. KC.94001.DPB
43 specifications Checked 4 days ago
- ProcessorIntel® Pentium®
- Maximum internal memory supported by processor16 GB
- On-board graphics cardYes
- Tjunction85 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Pentium®
- Maximum internal memory supported by processor
- 16 GB
- On-board graphics card
- Yes
- Tjunction
- 85 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Pentium B940
- Part number
- KC.94001.DPB
- Also known as
- Acer Intel Pentium B940 processor 2 GHz 2 MB L3 Tray
Specifications
43 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® |
| Processor model | B940 |
| Processor base frequency | 2 GHz |
| Processor cores | 2 |
| Processor socket | PGA988 |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Laptop |
| Processor threads | 2 |
| Processor operating modes | 64-bit |
| Processor cache | 2 MB |
| Processor cache type | L3 |
| L3 cache speed | 2 GHz |
| Thermal Design Power (TDP) | 35 W |
| Compatible chipsets | Intel® HM65 Express, Intel HM67 Express |
| Stepping | Q0 |
| Memory bandwidth supported by processor (max) | 21.3 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Mobile |
| Maximum number of PCI Express lanes | 1 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 32 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
What people say
Reviews & ratings
Acer Intel Pentium B940
No reviews yet
Be the first to tell others how Acer Intel Pentium B940 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Acer Intel Pentium B940
All cpu comparisons- Acer Intel Pentium B940 vsAcer Intel Xeon E3-1220Compare specs
- Acer Intel Pentium B940 vsAcer Intel Pentium G2020Compare specs
- Acer Intel Pentium B940 vsAcer intel Xeon E5630Compare specs
- Acer Intel Pentium B940 vsAcer Intel Celeron G1610Compare specs
- Acer Intel Pentium B940 vsDell i7-740QM processorCompare specs
- Acer Intel Pentium B940 vsFujitsu Xeon E5-2420 6C/12T 1.9GHzCompare specs
Similar products
All cpus
Fujitsu
Core i5-7200U processor
Model i5-7200U
- Processor
- Intel® Core™ i5
- Graphics
- Not available
- Type
- System on Chip
Fujitsu

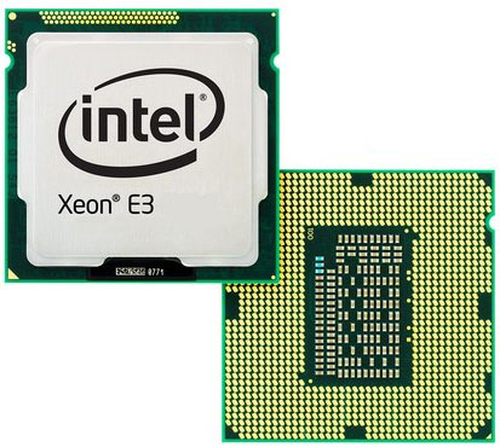

Intel Xeon Processor E3-1246 v3
