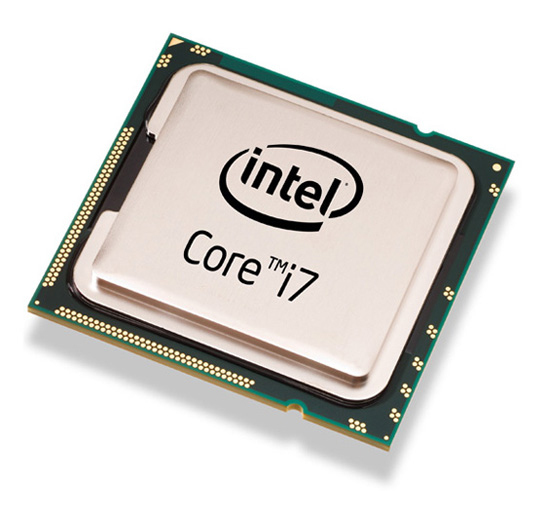

Acer Intel Core i7-980X Extreme Edition
Model Intel Core i7-980X Extreme EditionPart no. KC.98X01.CI7
48 specifications Checked 7 days ago
- ProcessorIntel® Core™ i7 Extreme Edition
- Processor manufacturerIntel
- Maximum internal memory supported by processor24 GB
- On-board graphics cardYes
- Tcase67.9 °C
- Processor package size42.5 mm
Overview
- Processor
- Intel® Core™ i7 Extreme Edition
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 24 GB
- On-board graphics card
- Yes
- Tcase
- 67.9 °C
- Processor package size
- 42.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Core i7-980X Extreme Edition
- Part number
- KC.98X01.CI7
- Also known as
- Acer Intel Core i7-980X Extreme Edition processor 3.33 GHz 12 MB L3 Tray
Specifications
48 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 Extreme Edition |
| Processor generation | Intel® Core™ i7 |
| Processor model | i7-980X |
| Processor base frequency | 3.33 GHz |
| Processor cores | 6 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 12 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| L3 cache speed | 3.33 GHz |
| Thermal Design Power (TDP) | 130 W |
| VID Voltage Range | 0.8500 - 1.3625 V |
| Compatible chipsets | Intel® X58 Express |
| Stepping | B1 |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Processor code | SLBUZ |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066 MHz |
| Memory channels | Triple-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Desktop |
| Processing Die size | 239 mm² |
| Supported instruction sets | SSE4.2 |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 32 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 67.9 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 42.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
