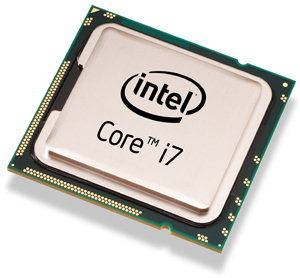

Acer Intel Core i7-740QM
Model Intel Core i7-740QMPart no. KC.74001.QMP
50 specifications Checked 3 days ago
- ProcessorIntel® Core™ i7
- Maximum internal memory supported by processor8 GB
- Execute Disable BitYes
- Tjunction100 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Core™ i7
- Maximum internal memory supported by processor
- 8 GB
- Execute Disable Bit
- Yes
- Tjunction
- 100 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Core i7-740QM
- Part number
- KC.74001.QMP
- Also known as
- Acer Intel Core i7-740QM processor 1.73 GHz 6 MB L3 Tray
Specifications
50 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 |
| Processor model | i7-740QM |
| Processor base frequency | 1.73 GHz |
| Processor cores | 4 |
| Processor socket | PGA988 |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Laptop |
| Processor threads | 8 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.93 GHz |
| Processor cache | 6 MB |
| Processor cache type | L3 |
| L3 cache speed | 1.73 GHz |
| Thermal Design Power (TDP) | 45 W |
| Compatible chipsets | Intel® HM55 Express, Intel® PM55 Express, Intel® QM57 Express |
| Stepping | B1 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Processor code | SLBQG |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Mobile |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8 |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| Supported instruction sets | SSE4.2 |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 45 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
