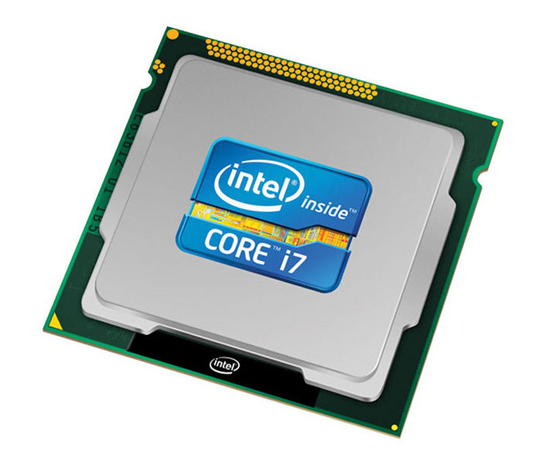

Acer Intel Core i7-3770K
Model Intel Core i7-3770KPart no. KC.37701.KI7
60 specifications Checked 4 days ago
- ProcessorIntel® Core™ i7
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tcase67.4 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Core™ i7
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tcase
- 67.4 °C
- Processor package size
- 37.5 mm
- Brand
- Acer
- Category
- CPU
- Model
- Intel Core i7-3770K
- Part number
- KC.37701.KI7
- Also known as
- Acer Intel Core i7-3770K processor 3.5 GHz 8 MB L3 Tray
Specifications
60 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | 3rd gen Intel® Core™ i7 |
| Processor model | i7-3770K |
| Processor base frequency | 3.5 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 22 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| L3 cache speed | 3.5 GHz |
| Thermal Design Power (TDP) | 77 W |
| Compatible chipsets | Intel® B75 Express, Intel® H61 Express, Intel® H67 Express, Intel® H77 Express, Intel® P67 Express, Intel Q75 Express, Intel® Q77 Express, Intel® Z68 Express, Intel® Z75 Express, Intel® Z77 Express |
| Stepping | E1 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Processor code | SR0PL |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Number of displays supported (on-board graphics) | 3 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 22 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 67.4 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
