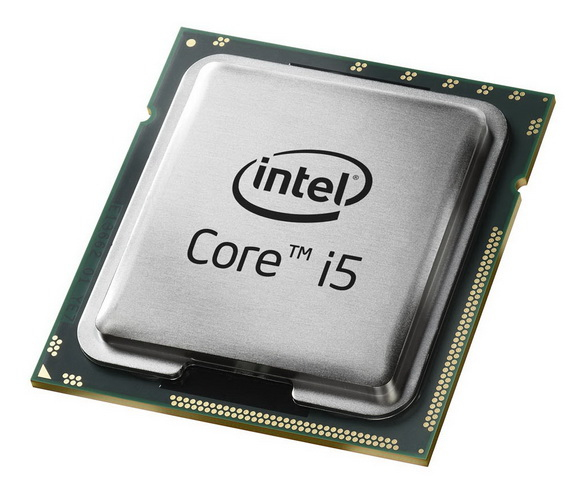

Acer Intel Core i5-2520M

Model Intel Core i5-2520MPart no. KC.25201.DMP

65 specifications Checked 3 days ago

Overview

65 specifications in 7 groups

Specification	Value
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2520M
Processor base frequency	2.5 GHz
Processor cores	2
Processor socket	PGA988
Processor lithography	32 nm
Package type	Tray
Component for	Laptop
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.2 GHz
Processor cache	3 MB
Processor cache type	L3
L3 cache speed	2.5 GHz
Thermal Design Power (TDP)	35 W
Compatible chipsets	Intel® HM65 Express, Intel HM67 Express, Intel® QM67 Express, Intel QS67 Express
Stepping	J1
Bus type	DMI
Memory bandwidth supported by processor (max)	21.3 GB/s
Processor code	SR048

Specification	Value
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory channels	Dual-channel
ECC	No

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1300 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Integrated 4G WiMAX	Yes
Market segment	Mobile
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	AVX
CPU configuration (max)	1
Graphics & IMC lithography	32 nm

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® vPro™ Platform Eligibility	Yes

Specification	Value
Tjunction	100 °C

Specification	Value
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
