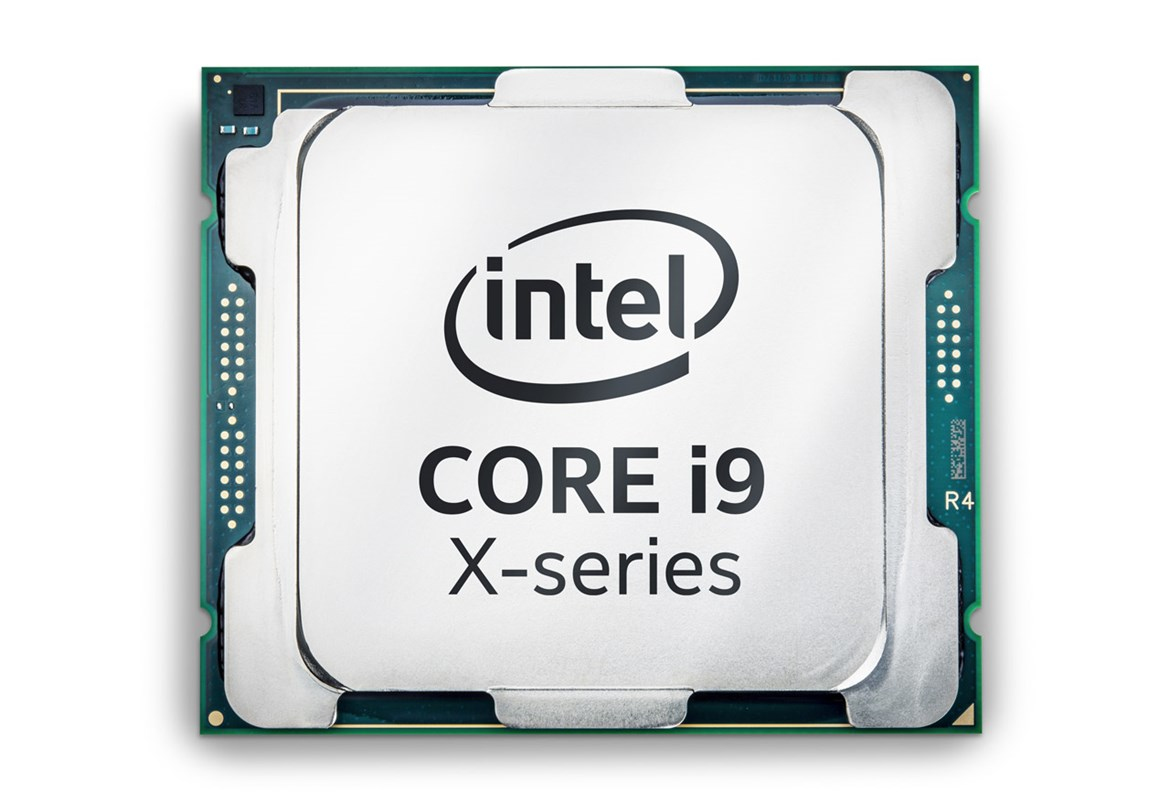

i9-7980XE processor
2.6 GHz 24.75 MB L3 Box
Model i9-7980XEPart no. KC.79801.XI9
73 specifications Checked today
- Processori9-7980XE
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor128 GB
- On-board graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- i9-7980XE
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 128 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Acer
- Category
- CPU
- Model
- i9-7980XE
- Part number
- KC.79801.XI9
- Also known as
- Acer i9-7980XE processor 2.6 GHz 24.75 MB L3 Box
Specifications
73 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 X-series Extreme Edition |
| Processor generation | 7th gen Intel® Core™ i9 |
| Processor model | i9-7980XE |
| Processor base frequency | 2.6 GHz |
| Processor cores | 18 |
| Processor socket | LGA 2066 (Socket R4) |
| Processor lithography | 14 nm |
| Package type | Box |
| Cooler included | No |
| Component for | Server/workstation |
| Processor threads | 36 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 24.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 165 W |
| Stepping | M0 |
| Bus type | DMI3 |
| Number of QPI links | 0 |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Processor codename | Skylake |
| Processor code | SR3RS |
| Processor ARK ID | 126699 |
| Generation | 7th Generation |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Quad-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 44 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Scalability | 1S |
| Thermal solution specification | PCG 2017X |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Max Technology 3.0 frequency | 4.4 GHz |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 94 °C |
Technical details
| Specification | Value |
|---|---|
| Processor cache | 25344 KB |
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Bus bandwidth | 8 |
| Bus speed | 8 GT/s |
| Bus type units | GT/s |
| Intel Turbo Boost Max Technology frequency | 4400 MHz |
| Last change | 63903513 |
| Launch date | Q3'17 |
| Maximum memory | 128 GB |
| Processor brand name | Intel Core i9 Extreme Edition Intel Core i9 Extreme Edition processor |
| Product family | Intel Core Processors |
| Status | Discontinued |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8542310001 |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 128 GB |
| Maximum internal memory | 131072 MB |
