i7-14700F processor

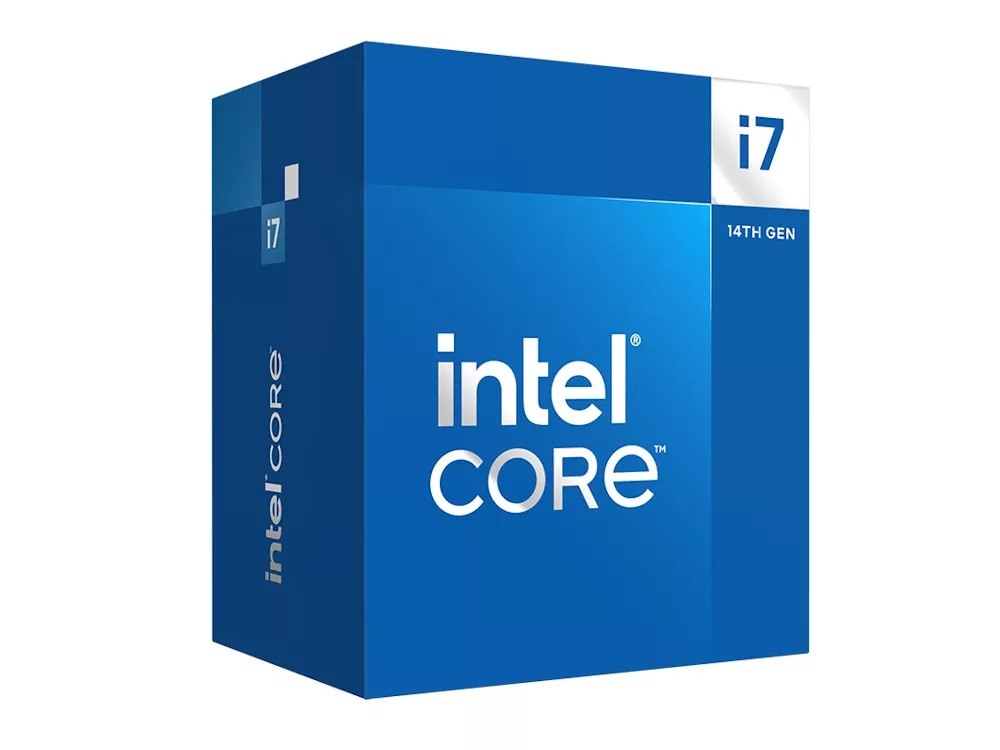

33 MB Smart Cache Box
Model i7-14700FPart no. KC.14701.FI7F
77 specifications Checked today
- ProcessorIntel® Core™ i7
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor192 GB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Core™ i7
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 192 GB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Acer
- Category
- CPU
- Model
- i7-14700F
- Part numbers
- KC.14701.FI7F, KC.SI747.001
- Also known as
- Acer i7-14700F processor 33 MB Smart Cache Box
Specifications
77 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700F |
| Processor cores | 20 |
| Processor socket | LGA 1700 |
| Package type | Box |
| Cooler included | Yes |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Performance cores | 8 |
| Efficient cores | 12 |
| Processor boost frequency | 5.4 GHz |
| Performance-core boost frequency | 5.3 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core boost frequency | 4.2 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
| Stepping | B0 |
| Maximum number of DMI lanes | 8 |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Processor codename | Raptor Lake |
| Processor ARK ID | 236854 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 89.6 GB/s |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| Use conditions | PC/Client/Tablet |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0, 5.0 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Embedded options available | No |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.4 GHz |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Thread Director | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8542310001 |
Technical details
| Specification | Value |
|---|---|
| Launch date | Q1'24 |
| Status | Launched |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 45 x 37.5 mm |
Other features
| Specification | Value |
|---|---|
| L2 cache | 28672 KB |
| Maximum internal memory | 192 GB |
