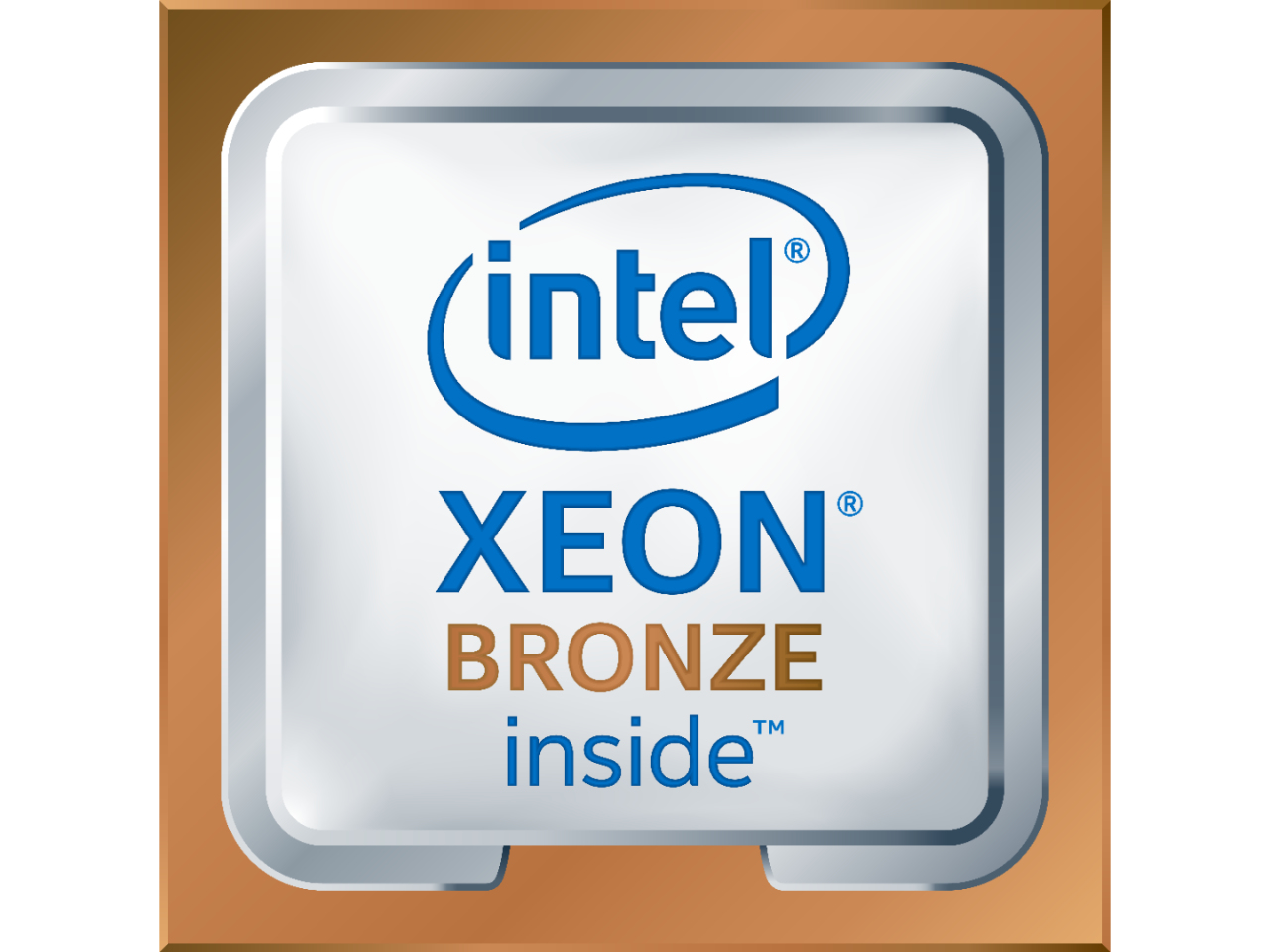

3204 processor
1.9 GHz 8.25 MB Box
Model 3204Part no. KC.20401.X3S
77 specifications Checked today
- ProcessorIntel Xeon Bronze
- GraphicsNot available
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor1 TB
- Discrete graphics cardNo
Overview
- Processor
- Intel Xeon Bronze
- Graphics
- Not available
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 1 TB
- Discrete graphics card
- No
- Brand
- Acer
- Category
- CPU
- Model
- 3204
- Part number
- KC.20401.X3S
- Also known as
- Acer 3204 processor 1.9 GHz 8.25 MB Box
Specifications
77 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Bronze |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 3204 |
| Processor base frequency | 1.9 GHz |
| Processor cores | 6 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Package type | Box |
| Cooler included | Yes |
| Component for | Server/workstation |
| Processor threads | 6 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 1.9 GHz |
| Processor cache | 8.25 MB |
| Thermal Design Power (TDP) | 85 W |
| Processor codename | Cascade Lake |
| Processor ARK ID | 193381 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Scalability | 2S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Transactional Synchronization Extensions | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Optane™ DC Persistent Memory Supported | No |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Run Sure Technology | No |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | No |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel Speed Select Technology (SST) | No |
| Intel® Optane™ DC Persistent Memory technology | No |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 77 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 43 mm |
| Package depth | 137 mm |
| Package height | 112 mm |
| Package weight | 201 g |
Technical details
| Specification | Value |
|---|---|
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Launch date | Q2'19 |
| Memory speed (max) | 2133 MHz |
| Number of UPI links | 2 |
| Status | Launched |
| Servicing status | Baseline Servicing |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 76mm x 56.5mm |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 1 TB |
