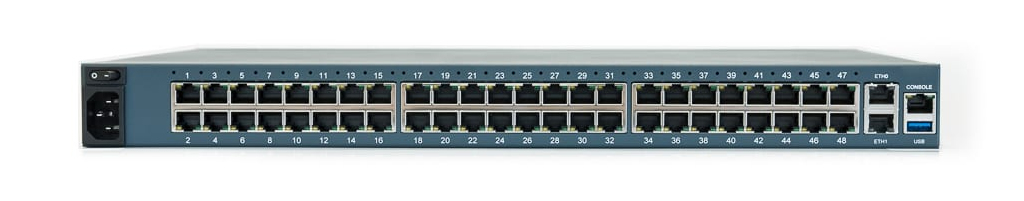

Nodegrid Serial Console - S Series 48-port unit, Single AC, Switchable Pinouts, 2-Cores
4GB RAM, 32GB SSD, Back-to-Front fans (air out)
Model NSC-T48S-STND-SAC-BEAN 810150220773
30 specifications
- Memory4096 MB
- Weight4.9 kg
- ColourBlue
- Internal modemNo
- Security algorithmsSSH, HTTPS, SSL/TLS, TLS, RSA
- Serial ports quantity48
Overview
- Memory
- 4096 MB
- Weight
- 4.9 kg
- Colour
- Blue
- Internal modem
- No
- Security algorithms
- SSH, HTTPS, SSL/TLS, TLS, RSA
- Serial ports quantity
- 48
- Brand
- ZPE
- Category
- Console Server
- Model
- NSC-T48S-STND-SAC-B
- Part number
- NSC-T48S-STND-SAC-B
- EAN / UPC
- 810150220773
- Also known as
- ZPE Nodegrid Serial Console - S Series 48-port unit, Single AC, Switchable Pinouts, 2-Cores, 4GB RAM, 32GB SSD, Back-to-Front fans (air out)
Specifications
30 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Internal modem | No |
| MIB support | Yes |
| Product colour | Blue |
| Rack mounting | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Event logging | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, HTTPS, SSL/TLS, TLS, RSA |
Ports & interfaces
| Specification | Value |
|---|---|
| Serial ports quantity | 48 |
| USB 2.0 ports quantity | 13 |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP module slots quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 45 W |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 62368-1 (USA) CSA C22.2 No. 62368-1(Canada), EN 62368-1:2014 (2nd Edition) (EU), IEC62368-1, 2nd Edition, Rev. February 26, 2014 (International), CB, EAC/Customs Union (CU), KCC, BSMI, CCC |
Memory
| Specification | Value |
|---|---|
| Flash memory | 32000 MB |
| RAM capacity | 4096 MB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 67 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Package depth | 600 mm |
| Package height | 230 mm |
| Package length | 59 cm |
| Package weight | 820 g |
| Package width | 490 mm |
| Weight | 4.9 kg |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Export Control Classification Number (ECCN) | 5A002 |
