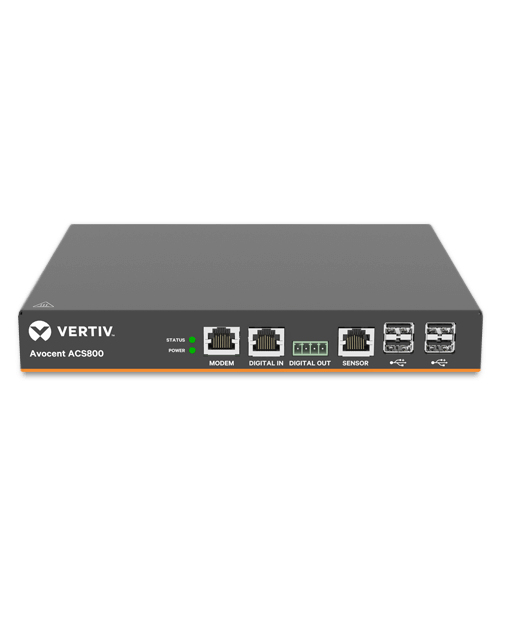

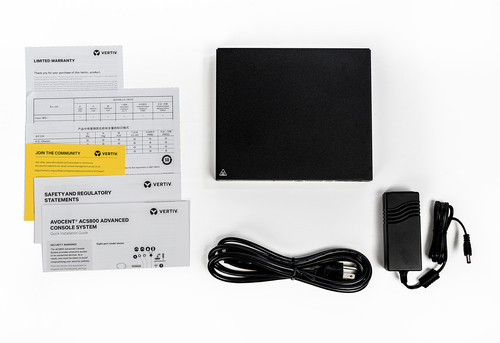

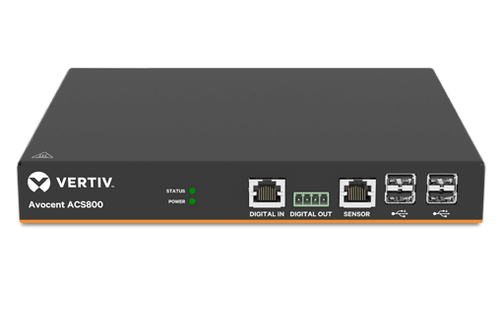

Vertiv Avocent 4-Port ACS800 Serial Console with external AC/DC Power Brick - Jumper cord: Plug C14 to connector C13
Vertiv

Avocent 4-Port ACS800 Serial Console with external AC/DC Power Brick - Jumper cord: Plug C14 to connector C13

Model ACS804EAC-404EAN 636430087429

47 specifications
  • ProcessorARM Cortex-A9
  • Memory1024 MB
  • OSEmbedded LINUX
  • Weight1.09 kg
  • ColourBlack
  • Internal modemYes
See all specifications

Overview

Processor
ARM Cortex-A9
Memory
1024 MB
OS
Embedded LINUX
Weight
1.09 kg
Colour
Black
Internal modem
Yes
Brand
Vertiv
Model
ACS804EAC-404
Part number
ACS804EAC-404
EAN / UPC
636430087429
Also known as
Vertiv Avocent 4-Port ACS800 Serial Console with external AC/DC Power Brick - Jumper cord: Plug C14 to connector C13

Specifications

47 specifications in 13 groups

Features

Internal modemYes
Product colourBlack
Rack mountingYes
Temperature sensorYes
Web-based managementYes
Zero Touch Provisioning (ZTP)Yes
Event loggingYes

Management features

Management protocolsCLI, HTTP/HTTPS, SNMP

Security

Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
Authentication methodLOCAL, RADIUS, LDAP, TACACS+ and ONE TIME PASSWORD(OTP)
IP address filteringYes
One-time password (OTP)Yes
RSA SecurIDYes

Ports & interfaces

Console portRJ-45
Serial ports quantity4
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports2

Software

Operating system installedEmbedded LINUX

Processor

Processor familyARM Cortex-A9
Processor architectureARM Cortex-A9
Processor cores2
Processor frequency667 MHz

Power

Power source typeAC, DC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)28 W
Power consumption (typical)7 W
DC input voltage12 V
Number of power supply units1

Network

Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
IP forwarding supportYes
Supported network protocolsIPv6
Cable types supportedCat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber

Certificates

CertificationFCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea)

Memory

Card reader integratedNo
Flash memory16000 MB
Internal memory1024 MB
RAM capacity1024 MB
RAM typeDDR3L
eMMC capacity16 GB

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 70 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 90 °C

Weight & dimensions

Dimensions (WxDxH)212.6 x 181.9 x 29.5 mm
Weight1.09 kg

Technical details

SafetyUL (USA), cUL (CANADA), EN-60950 (EU), CB, Customs Union (CU)
