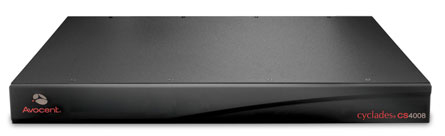

Cyclades CS
Model Cyclades CSPart no. CCS4008-001EAN 636430044613
13 specifications
- Weight2.9 kg
- Management protocolsTelnet, HTTP/HTTPS, TCP/IP, SNMP
- Security algorithms802.1x RADIUS, HTTPS, SSH
- Console portRJ-45
- Operating relative humidity (H-H)15 - 90%
- Dimensions (WxDxH)431.8 x 215.9 x 44.5 mm
Overview
- Weight
- 2.9 kg
- Management protocols
- Telnet, HTTP/HTTPS, TCP/IP, SNMP
- Security algorithms
- 802.1x RADIUS, HTTPS, SSH
- Console port
- RJ-45
- Operating relative humidity (H-H)
- 15 - 90%
- Dimensions (WxDxH)
- 431.8 x 215.9 x 44.5 mm
- Brand
- Vertiv
- Category
- Console Server
- Model
- Cyclades CS
- Part number
- CCS4008-001
- EAN / UPC
- 636430044613
- Also known as
- Vertiv Cyclades CS RJ-45
Specifications
13 specifications in 5 groups
Management features
| Specification | Value |
|---|---|
| Management protocols | Telnet, HTTP/HTTPS, TCP/IP, SNMP |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, HTTPS, SSH |
| Authentication method | RADIUS, TACACS+, LDAP, LDAP/AD, Kerberos, NIS, RSA/SecurID, OTP, PAP/CHAP |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
| Serial ports quantity | 8 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| CardBus PCMCIA slot type | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 10 - 44 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 431.8 x 215.9 x 44.5 mm |
| Weight | 2.9 kg |
