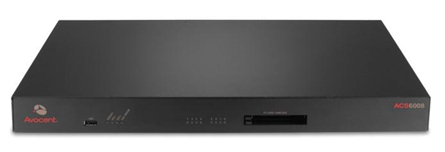

Cyclades ACS 6008
Model Cyclades ACS 6008Part no. ACS6008MDAC-001EAN 132017912431
14 specifications
- Weight2.99 kg
- Management protocolsIPv6
- Security algorithms802.1x RADIUS, EAP, SSH
- Console portRJ-45
- Operating relative humidity (H-H)20 - 80%
- Input current0.17 A
Overview
- Weight
- 2.99 kg
- Management protocols
- IPv6
- Security algorithms
- 802.1x RADIUS, EAP, SSH
- Console port
- RJ-45
- Operating relative humidity (H-H)
- 20 - 80%
- Input current
- 0.17 A
- Brand
- Vertiv
- Category
- Console Server
- Model
- Cyclades ACS 6008
- Part number
- ACS6008MDAC-001
- EAN / UPC
- 132017912431, 6364300581466
- Also known as
- Vertiv Cyclades ACS 6008 RJ-45
Specifications
14 specifications in 6 groups
Management features
| Specification | Value |
|---|---|
| Management protocols | IPv6 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, EAP, SSH |
| Authentication method | Local, RADIUS, TACACS+, LDAP, LDAP/AD, Kerberos, NIS, RSA/SecurID, OTP, PAP/CHAP |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
| Serial ports quantity | 8 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| CardBus PCMCIA slot type | Type III |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Power
| Specification | Value |
|---|---|
| Input current | 0.17 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438.2 x 241.3 x 44.5 mm |
| Weight | 2.99 kg |
