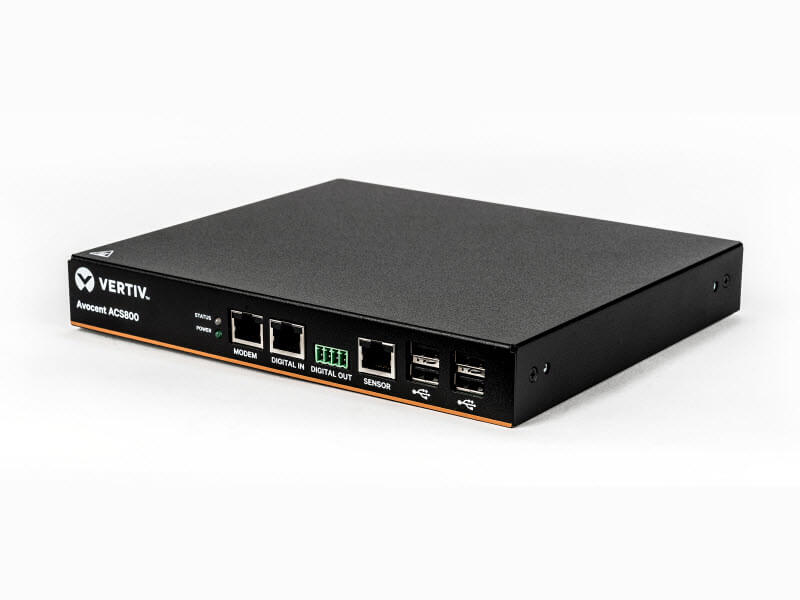

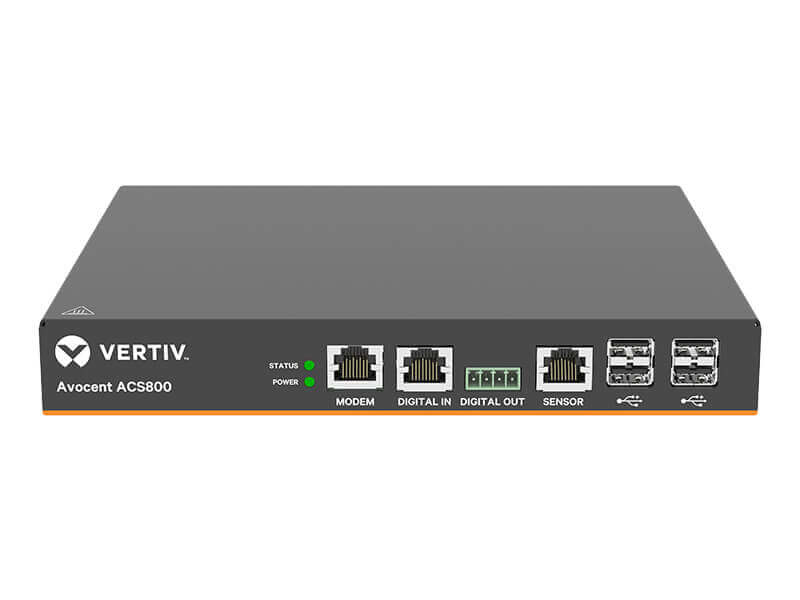

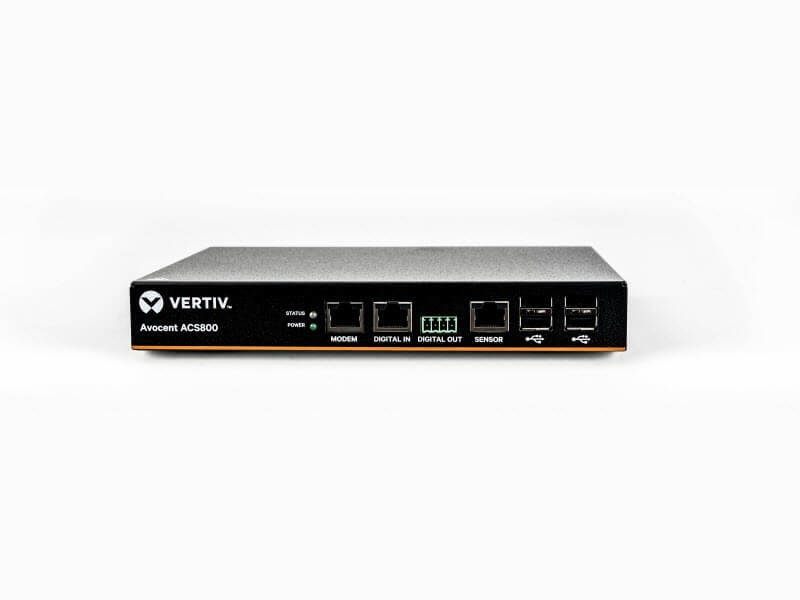

Vertiv Avocent ACS804MEAC-001 console server RJ-45

Avocent ACS804MEAC-001 console server RJ-45

Model ACS804MEAC-001EAN 636430081274

43 specifications

ProcessorARM Cortex-A9
Memory1024 MB
OSEmbedded LINUX
Weight1.08 kg
ColourBlack
Internal modemYes

See all specifications

Overview

Processor: ARM Cortex-A9
Memory: 1024 MB
OS: Embedded LINUX
Weight: 1.08 kg
Colour: Black
Internal modem: Yes

Brand: Vertiv
Category: Console Server
Model: ACS804MEAC-001
Part number: ACS804MEAC-001
EAN / UPC: 636430081274, 636430081281
Also known as: Vertiv Avocent ACS804MEAC-001 console server RJ-45

Specifications

43 specifications in 12 groups

Features

Specification	Value
Internal modem	Yes
Product colour	Black
Rack mounting	Yes
Temperature sensor	Yes
Web-based management	Yes
Zero Touch Provisioning (ZTP)	Yes
Event logging	Yes

Security

Specification	Value
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, FIPS 140-2, HTTPS, IPSec, SNMP, SSH, SSH-2
Authentication method	OTP, Local, RADIUS, TACACS+, LDA/AD
IP address filtering	Yes
One-time password (OTP)	Yes
RSA SecurID	Yes

Ports & interfaces

Specification	Value
Console port	RJ-45
Serial ports quantity	4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2

Software

Specification	Value
Operating system installed	Embedded LINUX

Processor

Specification	Value
Processor family	ARM Cortex-A9
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	667 MHz

Power

Specification	Value
Power source type	AC, DC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	28 W
Power consumption (typical)	7 W
DC input voltage	12 V
Number of power supply units	1

Network

Specification	Value
Copper ethernet cabling technology	10BASE-TX
Cable types supported	Cat5, Cat6

Certificates

Specification	Value
Certification	• FCC Class A • CE Class A (EU) • UKCA (UK) • ICES-003 (Canada) • VCCI (Japan) • RCM (Australia) • Customs Union (CU) • KCC (Korea)

Memory

Specification	Value
Card reader integrated	No
Flash memory	16000 MB
RAM capacity	1024 MB
RAM type	DDR3L
eMMC capacity	16 GB

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 90 °C

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	212 x 180 x 41 mm
Weight	1.08 kg

Technical details

Specification	Value
Safety	• UL (USA) • cUL (Canada) • EN-60950 (EU) • CB • Customs Union (CU)
