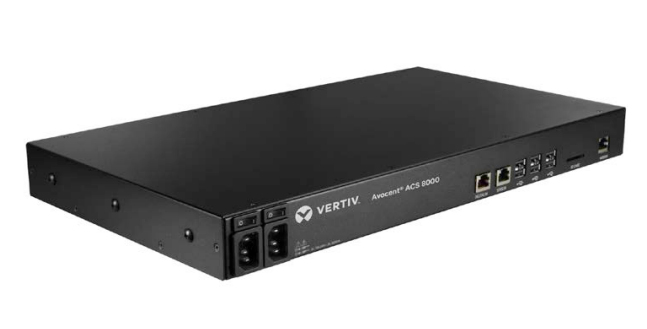

Avocent ACS8000 RS-232
Model ACS8000Part no. DACS8048DAC-400EAN 636430090009
39 specifications
- ProcessorARM Cortex-A9
- Memory1024 MB
- ColourBlack
- Management protocolsCLI, HTTP/ HTTPS, SNMP
- IP address filteringYes
- Console portRS-232
Overview
- Processor
- ARM Cortex-A9
- Memory
- 1024 MB
- Colour
- Black
- Management protocols
- CLI, HTTP/ HTTPS, SNMP
- IP address filtering
- Yes
- Console port
- RS-232
- Brand
- Vertiv
- Category
- Console Server
- Model
- ACS8000
- Part numbers
- DACS8048DAC-400, ACS8032-NA-DAC-400, ACS8048-NA-DAC-400
- EAN / UPC
- 636430090009, 636430090580
- Also known as
- Vertiv Avocent ACS8000 RS-232
Specifications
39 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Temperature sensor | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Event logging | Yes |
Management features
| Specification | Value |
|---|---|
| Management protocols | CLI, HTTP/ HTTPS, SNMP |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| Authentication method | LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| IP address filtering | Yes |
| One-time password (OTP) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RS-232 |
| Serial ports quantity | 48 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP module slots quantity | 2 |
| AC outlet types | C13 coupler |
Processor
| Specification | Value |
|---|---|
| Processor family | ARM Cortex-A9 |
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 667 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 28 W |
| Power consumption (typical) | 11 W |
| DC input voltage | 48 V |
| Input current | 0.67 A |
| Number of power supply units | 2 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
Memory
| Specification | Value |
|---|---|
| Flash memory | 16000 MB |
| RAM capacity | 1024 MB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Safety | UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
