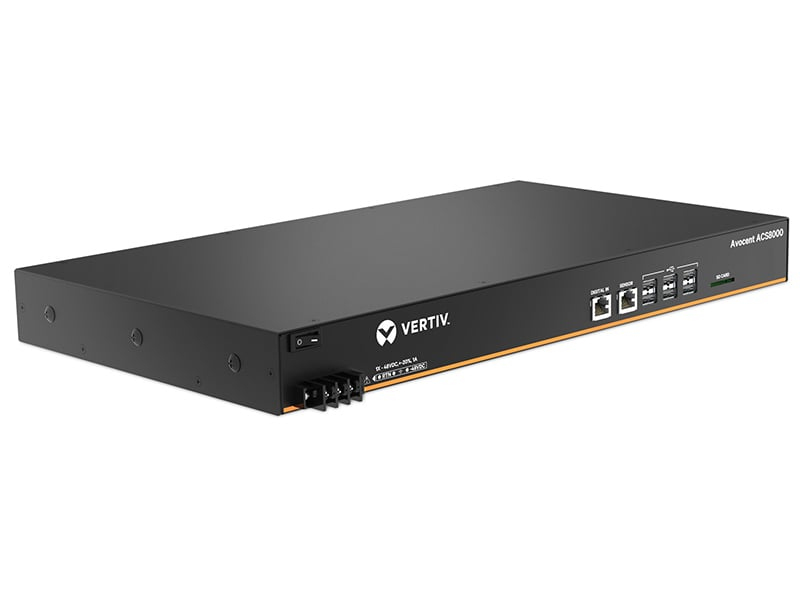

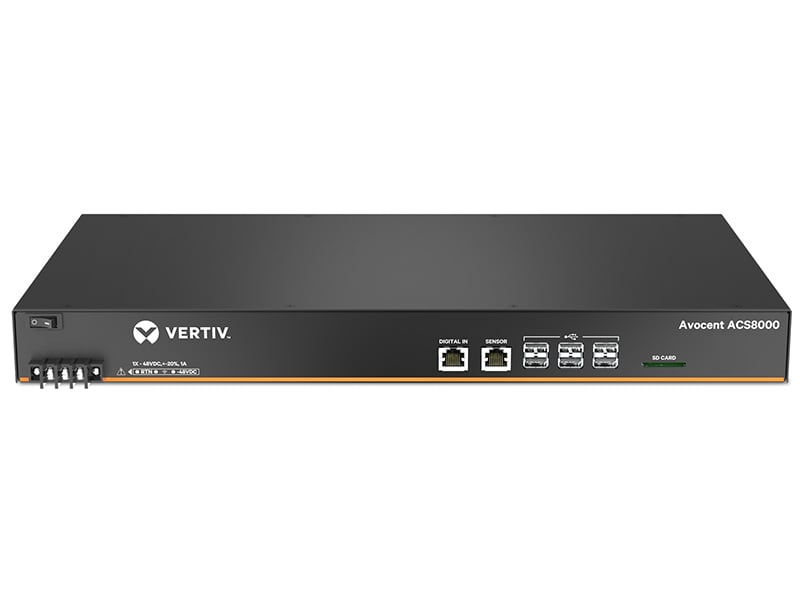

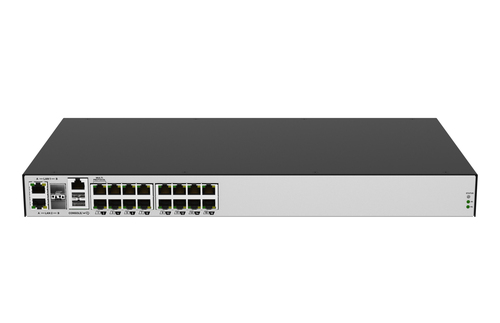

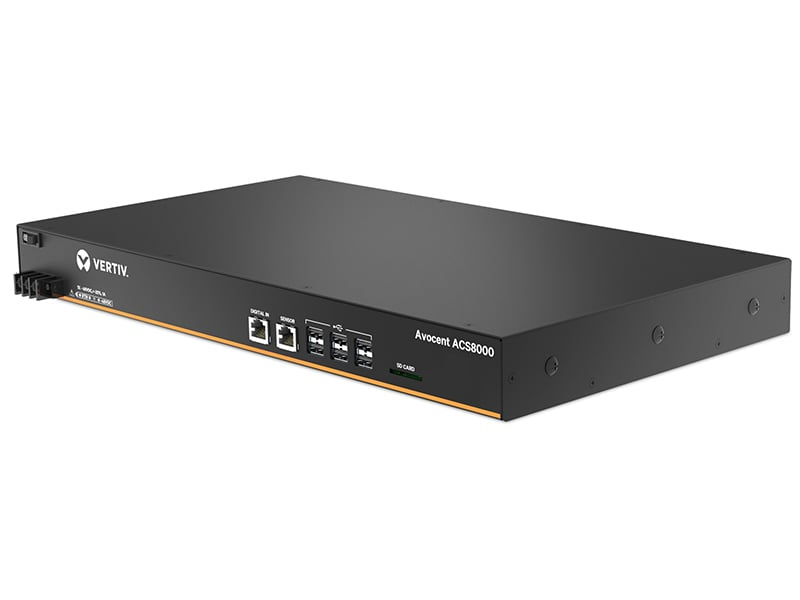

Vertiv ACS 8016SDC

ACS 8016SDC

Model ACS 8016SDCPart no. ACS8016SDC-400EAN 636430078953

22 specifications

Memory1000 MB
OSEmbedded LINUX
Rack mountingYes
Console portRS-232
Power source typeDC
Operating relative humidity (H-H)20 - 80%

See all specifications

Overview

Memory: 1000 MB
OS: Embedded LINUX
Rack mounting: Yes
Console port: RS-232
Power source type: DC
Operating relative humidity (H-H): 20 - 80%

Brand: Vertiv
Category: Console Server
Model: ACS 8016SDC
Part number: ACS8016SDC-400
EAN / UPC: 636430078953
Also known as: Vertiv Avocent ACS 8016SDC RS-232

Specifications

22 specifications in 8 groups

Features

Specification	Value
Rack mounting	Yes
Event logging	Yes

Ports & interfaces

Specification	Value
Console port	RS-232
Serial ports quantity	16
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	2
SFP module slots quantity	2

Software

Specification	Value
Operating system installed	Embedded LINUX

Power

Specification	Value
Power source type	DC
Power consumption (max)	33 W
Power consumption (typical)	11 W
DC input voltage	48 V

Certificates

Specification	Value
Certification	FCC Class A UL (USA) CE Class A (EU) cUL (Canada) ICES-003 (Canada) EN-60950 (EU) VCCI (Japan) CB RCM (Australia) Customs Union (CU) KCC (Korea)

Memory

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD
Flash memory	16000 MB
Internal memory	1000 MB

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	438.2 x 241.3 x 44.5 mm
