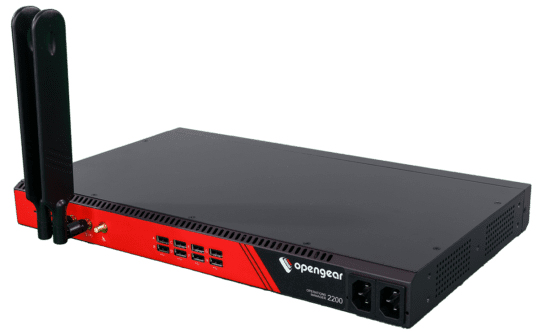

OM2224-24E-10G-L-1TB console server RJ-45/Micro-USB
Model OM2224-24E-10G-L-1TBEAN 843295106169
30 specifications
- ProcessorAMD
- Memory1000000 MB
- Weight3.5 kg
- ColourBlack, Red
- Mobile network generation4G
- Security algorithmsSNMP, 802.1x RADIUS, IPSec
Overview
- Processor
- AMD
- Memory
- 1000000 MB
- Weight
- 3.5 kg
- Colour
- Black, Red
- Mobile network generation
- 4G
- Security algorithms
- SNMP, 802.1x RADIUS, IPSec
- Brand
- Opengear
- Category
- Console Server
- Model
- OM2224-24E-10G-L-1TB
- Part number
- OM2224-24E-10G-L-1TB
- EAN / UPC
- 843295106169, 843295106220, 843295106237
- Also known as
- Opengear OM2224-24E-10G-L-1TB console server RJ-45/Micro-USB
Specifications
30 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 4G LTE | Yes |
| Product colour | Black, Red |
| Rack mounting | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, 802.1x RADIUS, IPSec |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45/Micro-USB |
| Serial ports quantity | 24 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 24 |
| SFP module slots quantity | 2 |
Processor
| Specification | Value |
|---|---|
| Processor family | AMD |
| Processor model | GX-412TC |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 30 W |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1000000 MB |
| RAM capacity | 8000 MB |
| RAM type | DDR3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Korean Industrial Standards (KS), VCCI |
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 260 x 45 mm |
| Weight | 3.5 kg |
