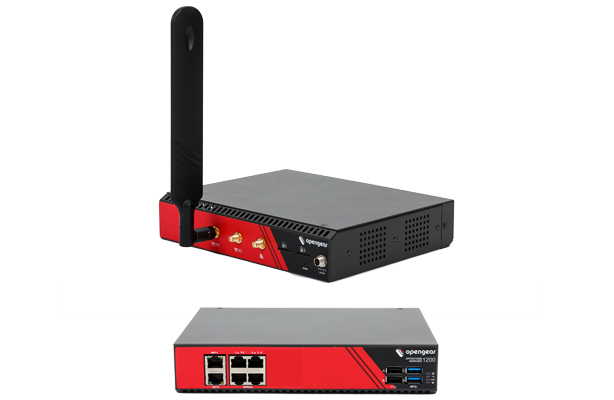

Opengear OM1204-4E-L console server RS-232

OM1204-4E-L console server RS-232

Model OM1204-4E-LEAN 843295103410

29 specifications

ProcessorAMD
Memory4000 MB
Weight1 kg
ColourBlack, Red
4G LTEYes
Security algorithmsSSH

See all specifications

Overview

Processor: AMD
Memory: 4000 MB
Weight: 1 kg
Colour: Black, Red
4G LTE: Yes
Security algorithms: SSH

Brand: Opengear
Category: Console Server
Model: OM1204-4E-L
Part number: OM1204-4E-L
EAN / UPC: 843295103410
Also known as: Opengear OM1204-4E-L console server RS-232

Specifications

29 specifications in 11 groups

Features

Specification	Value
4G LTE	Yes
Cellular	Yes
Product colour	Black, Red
Rack mounting	Yes
Supported programming languages	Python

Security

Specification	Value
Security algorithms	SSH
Authentication method	AAA – TACACS+

Ports & interfaces

Specification	Value
Console port	RS-232
Serial ports quantity	4
USB 2.0 ports quantity	2

Processor

Specification	Value
Processor family	AMD
Processor model	GX-412TC
Processor cores	4
Processor frequency	1400 MHz

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	25 W
DC input voltage	12 V

Network

Specification	Value
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T

Certificates

Specification	Value
Certification	IEC 6950-1, IEC 62368-1, CAN/CSA-C22.2,NERC CIP

Memory

Specification	Value
Flash memory	16000 MB
RAM capacity	4000 MB
RAM type	DDR3

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-30 - 60 °C

Technical details

Specification	Value
Compliance certificates	CE, RoHS

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	220 x 170 x 42 mm
Weight	1 kg
