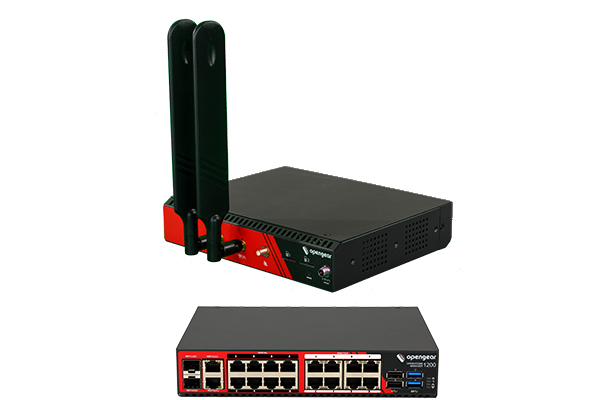

OM1200 RJ-45
Model OM1200Part no. OM1208-8E-LEAN 843295103397
32 specifications
- ProcessorAMD
- Memory16000 MB
- Weight1 kg
- ColourBlack, Red
- 4G LTEYes
- Security algorithmsSSH
Overview
- Processor
- AMD
- Memory
- 16000 MB
- Weight
- 1 kg
- Colour
- Black, Red
- 4G LTE
- Yes
- Security algorithms
- SSH
- Brand
- Opengear
- Category
- Console Server
- Model
- OM1200
- Part numbers
- OM1208-8E-L, OM1208-L, OM1204-L
- EAN / UPC
- 843295103397, 843295103366, 843295103434
- Also known as
- Opengear OM1200 RJ-45
Specifications
32 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 4G LTE | Yes |
| Cellular | Yes |
| Product colour | Black, Red |
| Rack mounting | Yes |
| Supported programming languages | Python |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH |
| Authentication method | AAA – TACACS+ |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
| Serial ports quantity | 8 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| SFP module slots quantity | 2 |
Processor
| Specification | Value |
|---|---|
| Processor family | AMD |
| Processor model | GX-412TC |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| Power consumption (typical) | 25 W |
| DC input voltage | 12 V |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC 6950-1, IEC 62368-1, CAN/CSA-C22.2,NERC CIP |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16000 MB |
| RAM capacity | 4000 MB |
| RAM type | DDR3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 75 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 220 x 170 x 42 mm |
| Weight | 1 kg |
