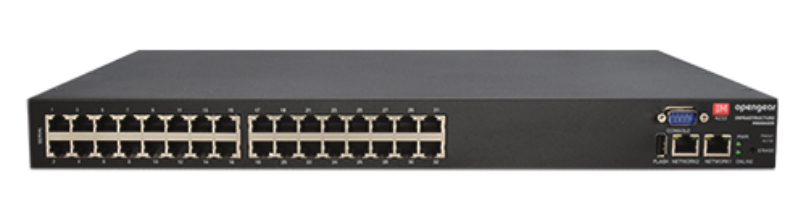

IM4200 RJ-45
Model IM4200Part no. IM4208-2-DAC-X2-GS-UK
13 specifications
- Weight4.5 kg
- Rack mountingYes
- Authentication methodRSA SecurID, LDAP
- Console portRJ-45
- Power source typeAC
- Operating relative humidity (H-H)5 - 90%
Overview
- Weight
- 4.5 kg
- Rack mounting
- Yes
- Authentication method
- RSA SecurID, LDAP
- Console port
- RJ-45
- Power source type
- AC
- Operating relative humidity (H-H)
- 5 - 90%
- Brand
- Opengear
- Category
- Console Server
- Model
- IM4200
- Part numbers
- IM4208-2-DAC-X2-GS-UK, IM4232-2-DAC-X0-US, IM4208-2-DAC-X0-US, IM4216-2-DAC-X2-US, IM4248-2-DAC-X2-US, IM4248-2-DAC-X2-G-US +34 more
- Also known as
- Opengear IM4200 RJ-45
Specifications
13 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP, WEP, WPA, WPA-PSK, WPA2-PSK |
| Authentication method | RSA SecurID, LDAP |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
| Serial ports quantity | 32 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 30 W |
| Number of power supply units | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 254 x 45 mm |
| Weight | 4.5 kg |
