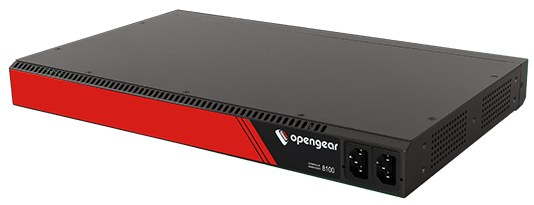

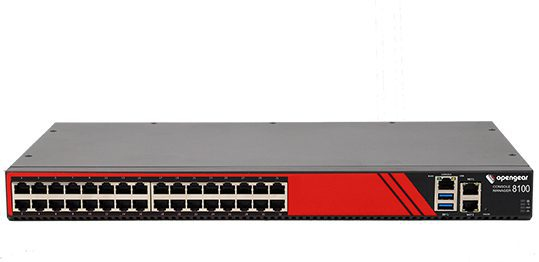

CM8132 console server RS-232
Model CM8132EAN 843295106671
32 specifications
- ProcessorMarvell
- Memory2000 MB
- Weight4.5 kg
- ColourBlack, Red
- MIB supportYes
- Security algorithmsIPSec, SNMP, SSH
Overview
- Processor
- Marvell
- Memory
- 2000 MB
- Weight
- 4.5 kg
- Colour
- Black, Red
- MIB support
- Yes
- Security algorithms
- IPSec, SNMP, SSH
- Brand
- Opengear
- Category
- Console Server
- Model
- CM8132
- Part number
- CM8132
- EAN / UPC
- 843295106671
- Also known as
- Opengear CM8132 console server RS-232
Specifications
32 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| MIB support | Yes |
| Product colour | Black, Red |
| Rack mounting | Yes |
| Supported programming languages | Perl, Python |
| Temperature sensor | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SNMP, SSH |
| Authentication method | TACACS+, RADIUS, OpenLDAP |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RS-232 |
| Serial ports quantity | 32 |
| Ethernet LAN (RJ-45) ports | 2 |
| AC outlet types | C14 coupler |
Processor
| Specification | Value |
|---|---|
| Processor family | Marvell |
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 1.6 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 15 W |
| Number of power supply units | 2 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Memory
| Specification | Value |
|---|---|
| Flash memory | 32000 MB |
| Internal memory | 2000 MB |
| RAM type | DDR4 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 235 x 44 mm |
| Weight | 4.5 kg |
