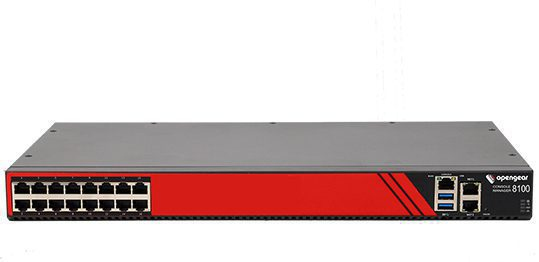

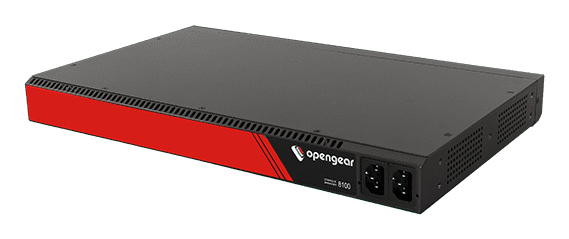

CM8116 console server RS-232/RJ-45

CM8116 console server RS-232/RJ-45

Model CM8116EAN 843295106657

44 specifications

ProcessorMarvell
Memory2000 MB
Weight4.5 kg
ColourBlack, Red
Cooling typePassive
Management protocolsSNMP

See all specifications

Overview

Processor: Marvell
Memory: 2000 MB
Weight: 4.5 kg
Colour: Black, Red
Cooling type: Passive
Management protocols: SNMP

Brand: Opengear
Category: Console Server
Model: CM8116
Part number: CM8116
EAN / UPC: 843295106657
Also known as: Opengear CM8116 console server RS-232/RJ-45

Specifications

44 specifications in 11 groups

Features

Specification	Value
Cooling type	Passive
MIB support	Yes
Product colour	Black, Red
Rack mounting	Yes
Supported programming languages	Perl, Python
Temperature sensor	Yes
Web-based management	Yes
Zero Touch Provisioning (ZTP)	Yes

Management features

Specification	Value
Management protocols	SNMP
Management software	API access, Docker, Python, Perl, Bash

Security

Specification	Value
Security algorithms	IPSec, SSH, TACACS+
Authentication method	TACACS+, RADIUS, OpenLDAP
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
VPN support	OpenVPN

Ports & interfaces

Specification	Value
Console port	RS-232/RJ-45
Serial ports quantity	16
Serial port speed	230.4 Kbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC outlet types	C14 coupler

Processor

Specification	Value
Processor family	Marvell
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	1600 MHz

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of power supply units	2

Network

Specification	Value
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Link aggregation	Yes
Internet connection backup	Yes
Automatic backup	Yes
Electrostatic Discharge (ESD) protection	Yes
Electrostatic Discharge (ESD) protection	1.5 kV

Memory

Specification	Value
Flash memory	32000 MB
Internal memory	2000 MB
RAM type	DDR4

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-30 - 60 °C

Technical details

Specification	Value
Compliance certificates	RoHS

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	440 x 235 x 44 mm
Weight	4.5 kg
