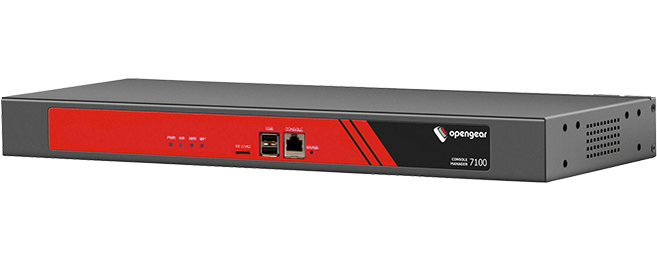

CM7100 RS-232
Model CM7100Part no. CM7116-2-SAC-USEAN 843295100631
18 specifications
- ProcessorMarvell
- Memory256 MB
- Weight4 kg
- ColourBlack, Red
- Console portRS-232
- Power source typeAC
Overview
- Processor
- Marvell
- Memory
- 256 MB
- Weight
- 4 kg
- Colour
- Black, Red
- Console port
- RS-232
- Power source type
- AC
- Brand
- Opengear
- Category
- Console Server
- Model
- CM7100
- Part numbers
- CM7116-2-SAC-US, CM7148-2-SAC-US, CM7116-2-DAC-US, CM7132-2-DAC-US, CM7148-2-DAC-US
- EAN / UPC
- 843295100631, 843295100754, 843295100693, 843295100884
- Also known as
- Opengear CM7100 RS-232
Specifications
18 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RS-232 |
| Serial ports quantity | 16 |
| Ethernet LAN (RJ-45) ports | 2 |
Processor
| Specification | Value |
|---|---|
| Processor family | Marvell |
| Processor frequency | 800 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
Memory
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| RAM capacity | 256 MB |
| RAM type | DDR3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 175 x 45 mm |
| Weight | 4 kg |
