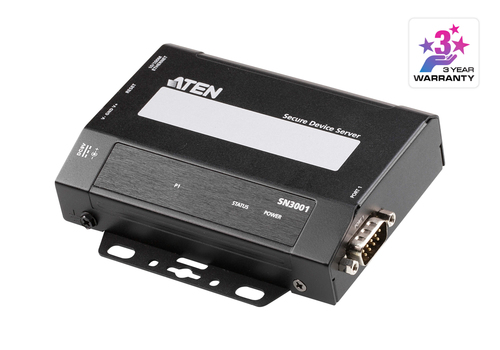

SN3001 console server RS-232
Model SN3001EAN 672792012839
12 specifications
- Weight200 g
- Console portRS-232
- AC input voltage100-240 V
- Operating relative humidity (H-H)5 - 95%
- Dimensions (WxDxH)98 x 117 x 26 mm
Overview
- Weight
- 200 g
- Console port
- RS-232
- AC input voltage
- 100-240 V
- Operating relative humidity (H-H)
- 5 - 95%
- Dimensions (WxDxH)
- 98 x 117 x 26 mm
- Brand
- ATEN
- Category
- Console Server
- Model
- SN3001
- Part number
- SN3001
- EAN / UPC
- 672792012839
- Also known as
- ATEN SN3001 console server RS-232
Specifications
12 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RS-232 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC 61000-4-11 DIPs UL 60950-1, UL 62368-1 RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 98 x 117 x 26 mm |
| Weight | 200 g |
