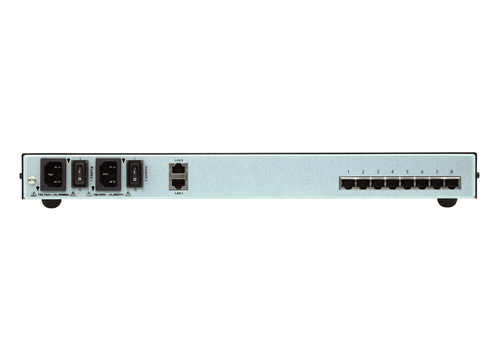

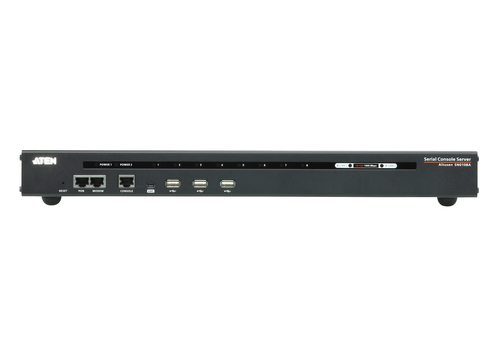

SN0108A console server RJ-45
Model SN0108AEAN 672792403354
20 specifications
- Weight4.35 kg
- ColourBlack
- Security algorithmsSSH, SSL/TLS
- Console portRJ-45
- Power source typeAC
- Operating relative humidity (H-H)0 - 80%
Overview
- Weight
- 4.35 kg
- Colour
- Black
- Security algorithms
- SSH, SSL/TLS
- Console port
- RJ-45
- Power source type
- AC
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- Console Server
- Model
- SN0108A
- Part numbers
- SN0108A, SN0108A-AX-E
- EAN / UPC
- 672792403354
- Also known as
- ATEN SN0108A console server RJ-45
Specifications
20 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Web-based management | Yes |
| Event logging | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, SSL/TLS |
| IP address filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
| Serial ports quantity | 8 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 22.1 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 437.2 x 329.8 x 44 mm |
| Weight | 4.35 kg |
