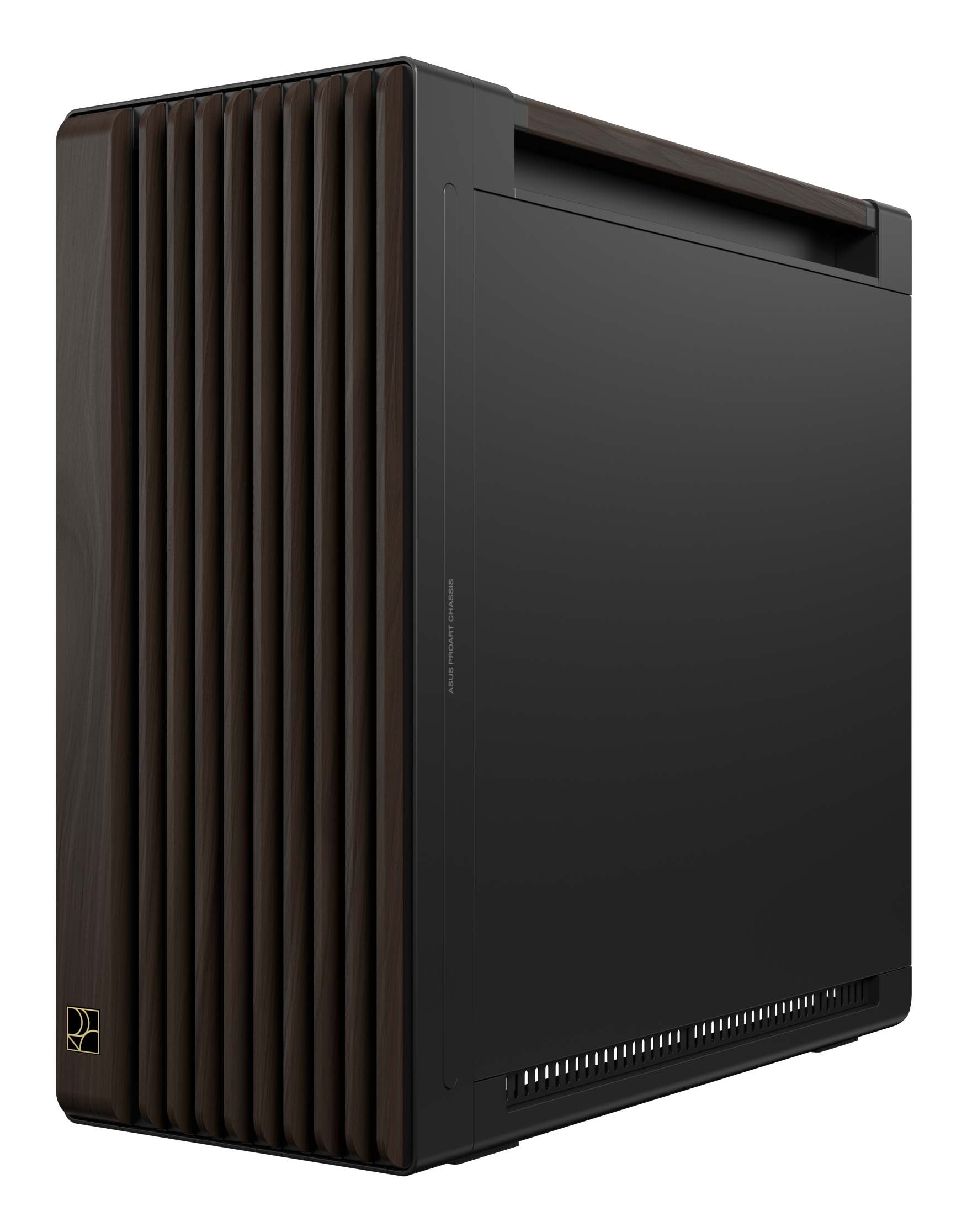

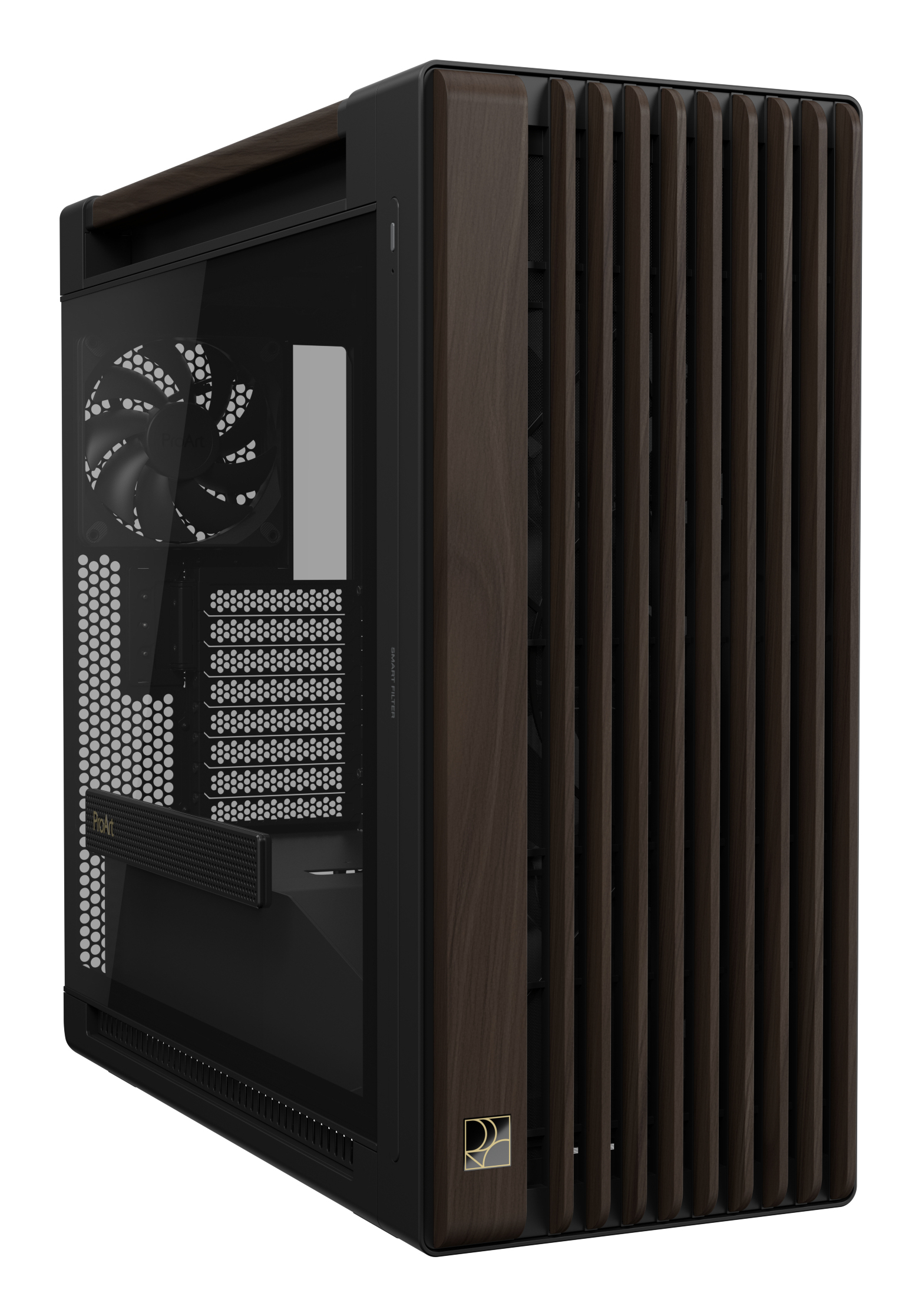

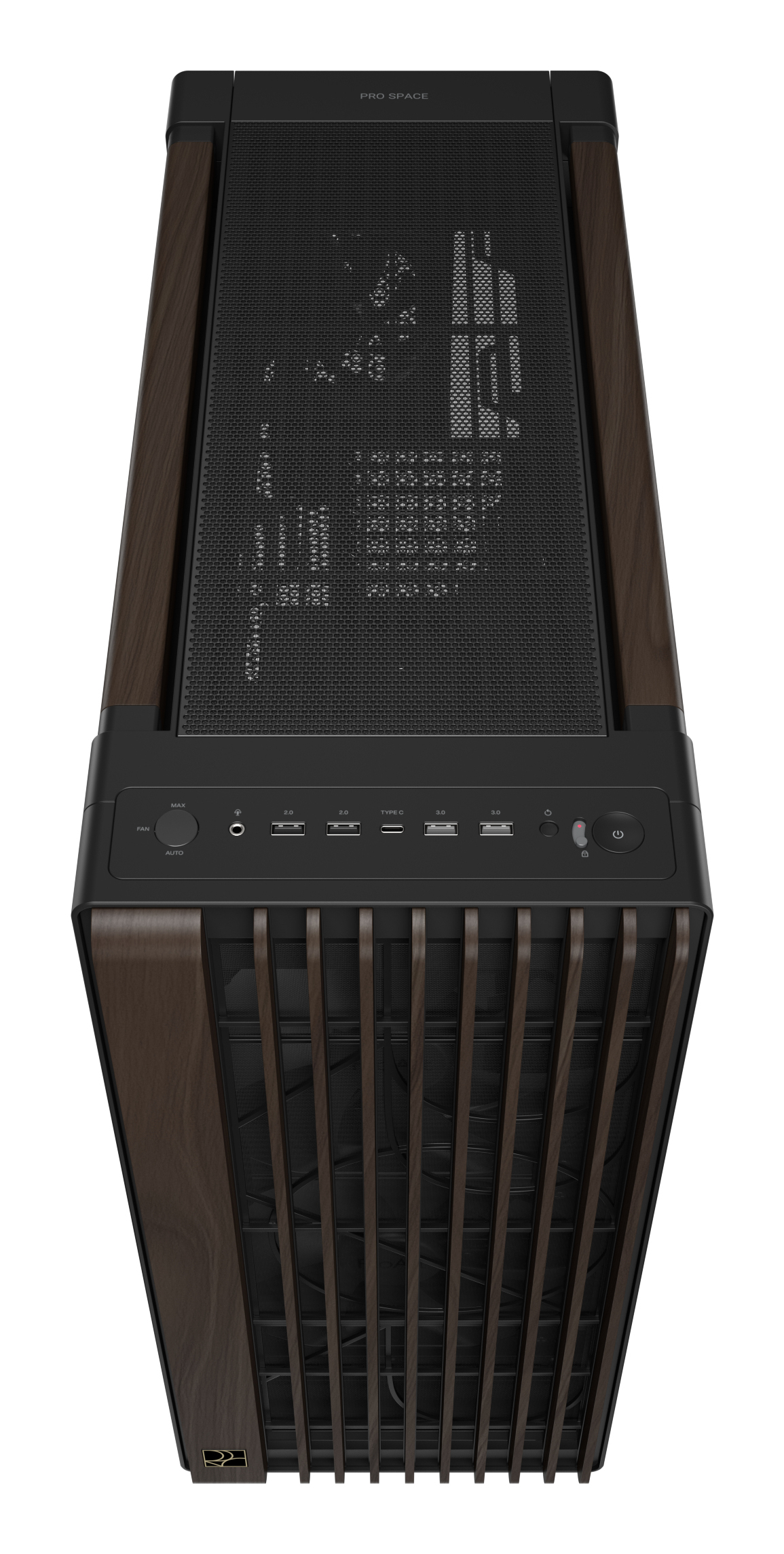

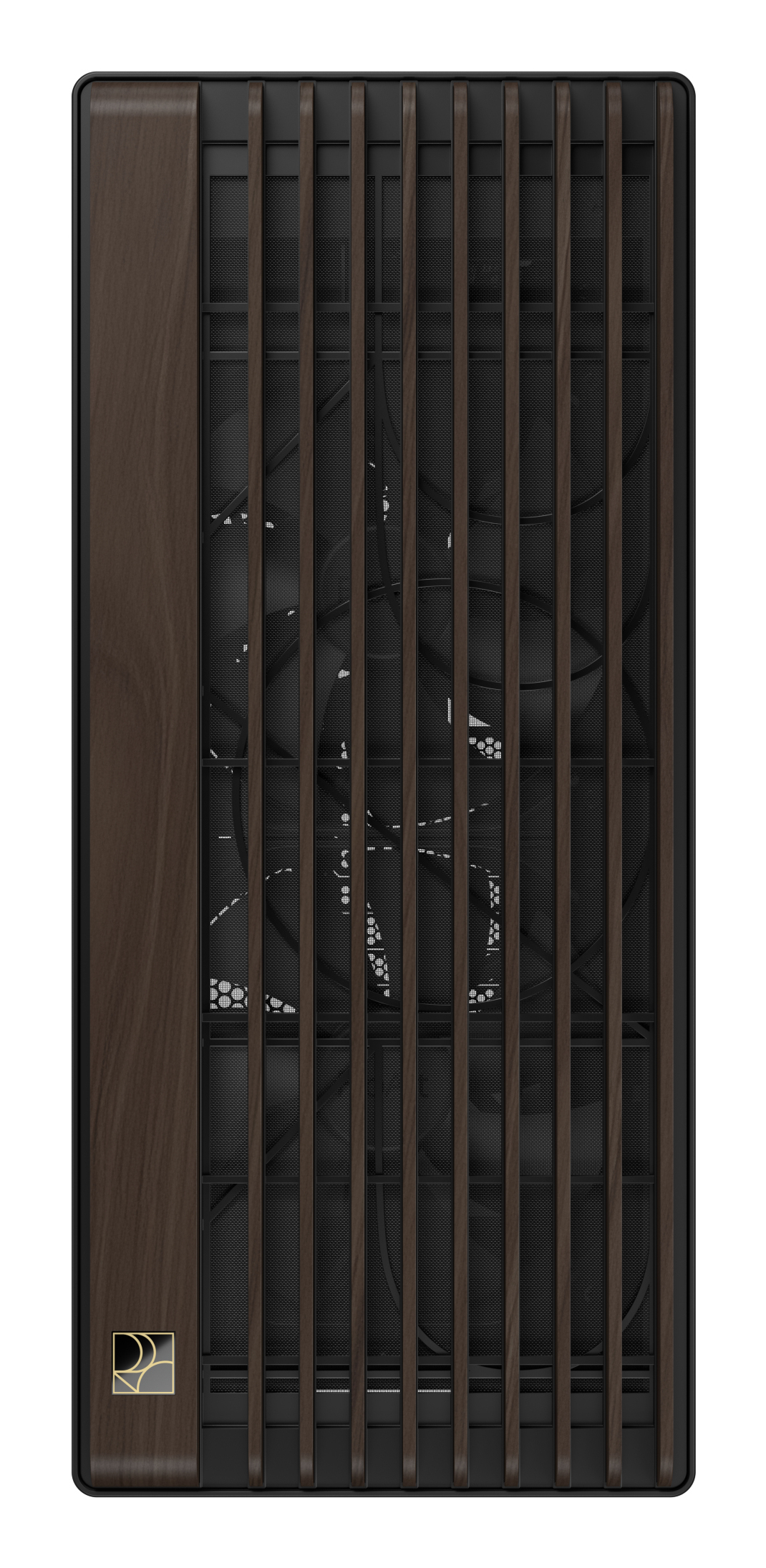

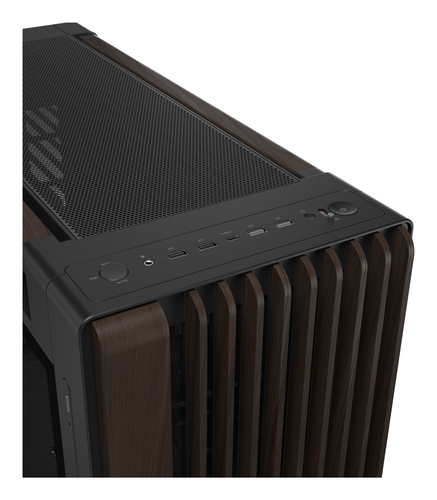

ProArt PA602 Wood Edition Modern Black - Tempered Glass Panel
Model ProArt PA602 Wood Edition Modern Black - Tempered Glass PanelPart no. 90DC00J0-B09030EAN 199291014251
45 specifications
- TypeMidi Tower
- Weight15.8 kg
- ColourBlack, Wood
- Power supply includedNo
- USB 2.0 ports quantity2
- Fan speed controlYes
Overview
- Type
- Midi Tower
- Weight
- 15.8 kg
- Colour
- Black, Wood
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Fan speed control
- Yes
- Brand
- ASUS
- Category
- Computer Case
- Model
- ProArt PA602 Wood Edition Modern Black - Tempered Glass Panel
- Part number
- 90DC00J0-B09030
- EAN / UPC
- 199291014251, 4711636014250
- Also known as
- ASUS ProArt PA602 Wood Edition Modern Black - Tempered Glass Panel Midi Tower Black, Wood
Specifications
45 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Metal, Wood |
| Product colour | Black, Wood |
| Supported motherboard form factors | ATX, DTX, EATX, micro ATX, Mini-DTX, Mini-ITX |
| Number of 3.5" bays | 4 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 44 cm |
| Maximum PSU length | 19 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Fan speed control | Yes |
| Front fans installed | 2x 200 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 200 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 8 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 593 mm |
| Height | 560 mm |
| Weight | 15.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 735 mm |
| Package depth | 370 mm |
| Package height | 670 mm |
| Package weight | 19.8 kg |
