Product comparison · 2 security cameras

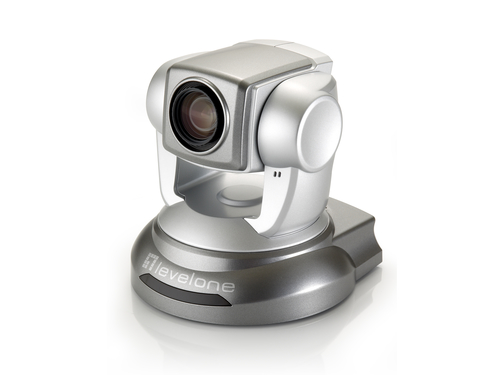

LevelOne PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom vs LevelOne Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night

66specifications compared
28differ
38identical
42known for one product only

Key differences

Form factor
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:Cube
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:Box
Mounting type
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:Desk
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:Wall
Product colour
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:Silver
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:Black, Grey, White
LED indicators
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:Link, Power
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:Power
Minimum illumination
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:1 lx
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:0.05 lx
Optical sensor size
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:25.4 / 2.7 mm (1 / 2.7")
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:25.4 / 3.2 mm (1 / 3.2")
Focus adjustment
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:1.8 - 3.0
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:2.0
Night vision
- PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom:No
- Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night:Yes

Side by side

Differences highlightedShow differences only

Comparison of FCS-1041, FCS-1153
108 specifications	A LevelOne PTZ Network Camera, 2-Megapixel, 802.3af PoE, WDR, 10x Optical Zoom Model FCS-1041 View product	B LevelOne Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night Model FCS-1153 View product
Performanceidentical
Type	IP security camera	IP security camera
Connectivity technology	Wired	Wired
PTZ control	Yes	Yes
Auto pan modeKnown for one	Yes	Unknown — not stated by the source
Auto patrol modeKnown for one	Yes	Unknown — not stated by the source
Wide Dynamic Range (WDR)	Yes	Yes
Certification	CE, FCC, ONVIF	CE, FCC, ONVIF
Day/night modeKnown for one	Unknown — not stated by the source	Yes
Design4 differ
Form factorDiffers	Cube	Box
Mounting typeDiffers	Desk	Wall
Product colourDiffers	Silver	Black, Grey, White
LED indicatorsDiffers	Link, Power	Power
Country of origin	Taiwan	Taiwan
Camera1 differ
Minimum illuminationDiffers	1 lx	0.05 lx
Tilt angle rangeKnown for one	-45 - 90°	Unknown — not stated by the source
Pan rangeKnown for one	-177.5 - 177.5°	Unknown — not stated by the source
White balance	Auto	Auto
Camera shutter type	Electronic	Electronic
Camera shutter speed	1/5 - 1/10000 s	1/5 - 1/10000 s
Lens viewing angle, horizontalKnown for one	Unknown — not stated by the source	81.6°
Image sensor1 differ
Sensor type	CMOS	CMOS
Optical sensor sizeDiffers	25.4 / 2.7 mm (1 / 2.7")	25.4 / 3.2 mm (1 / 3.2")
Progressive scan	Yes	Yes
Lens system1 differ
Zoom capability	Yes	Yes
Optical zoomKnown for one	10x	Unknown — not stated by the source
Digital zoomKnown for one	4x	Unknown — not stated by the source
Focal length rangeKnown for one	4.9 - 49 mm	Unknown — not stated by the source
Auto focusKnown for one	Yes	Unknown — not stated by the source
Focus adjustmentDiffers	1.8 - 3.0	2.0
Number of lensesKnown for one	Unknown — not stated by the source	1
FocusKnown for one	Unknown — not stated by the source	Manual
Fixed focal lengthKnown for one	Unknown — not stated by the source	2.93 mm
Night vision1 differ
Night visionDiffers	No	Yes
Video5 differ
Maximum resolutionDiffers	1920 x 1080 pixels	2592 x 1944 pixels
Total megapixelsDiffers	2 MP	5 MP
Video formats supportedDiffers	MPEG4	Raw
Video compression formatsDiffers	H.264, M-JPEG, MPEG4	H.264, M-JPEG
Supported video modesDiffers	1080p	240p, 480p, 720p, 1080p
Frame rate	30 fps	30 fps
Noise reduction	Yes	Yes
Automatic gain control	Yes	Yes
Flip & mirrorKnown for one	Yes	Unknown — not stated by the source
Full HD	Yes	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness	Brightness, Contrast, Saturation, Sharpness
Time stamp overlayKnown for one	Yes	Unknown — not stated by the source
Supported graphics resolutionsKnown for one	Unknown — not stated by the source	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Video streamingKnown for one	Unknown — not stated by the source	Yes
Back Light Compensation (BLC)Known for one	Unknown — not stated by the source	Yes
Audio2 differ
Audio systemKnown for one	2-way	Unknown — not stated by the source
Built-in microphoneDiffers	Yes	No
Voice codecsDiffers	AMR, G.711	G.711
Audio formats supportedKnown for one	Unknown — not stated by the source	G.711
Network2 differ
Ethernet LAN	Yes	Yes
Wi-Fi	No	No
Ethernet interface typeDiffers	Gigabit Ethernet	Fast Ethernet
Networking standardsKnown for one	IEEE 802.3, IEEE 802.3af, IEEE 802.3u	Unknown — not stated by the source
Supported network protocolsDiffers	TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, NTP, PPPoE, DNS, DHCP, RTSP, Samba	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
BluetoothKnown for one	Unknown — not stated by the source	No
Storage1 differ
Built-in HDD	No	No
Card reader integrated	Yes	Yes
Compatible memory cardsDiffers	SD, SDHC	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB	64 GB
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
Microphone inKnown for one	Yes	Unknown — not stated by the source
Headphone outputsKnown for one	1	Unknown — not stated by the source
USB portKnown for one	Yes	Unknown — not stated by the source
Terminal block port	Yes	Yes
DC-in jack	Yes	Yes
Interface	RJ-45	RJ-45
Securityidentical
Password protection typeKnown for one	User	Unknown — not stated by the source
HTTPS encryptionKnown for one	Yes	Unknown — not stated by the source
IP address filteringKnown for one	Yes	Unknown — not stated by the source
Motion sensorKnown for one	Yes	Unknown — not stated by the source
Management featuresidentical
Reset button	Yes	Yes
Power1 differ
Power source type	PoE	PoE
Power consumption (typical)Differs	8 W	4.002 W
DC output currentKnown for one	1.5 A	Unknown — not stated by the source
Power over Ethernet (PoE)	Yes	Yes
Operational conditions1 differ
Operating temperature (T-T)Differs	0 - 40 °C	-10 - 50 °C
Operating relative humidity (H-H)	10 - 85%	10 - 85%
System requirementsidentical
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Weight & dimensions4 differ
WidthDiffers	107 mm	67 mm
DepthDiffers	105 mm	169 mm
HeightDiffers	110 mm	65 mm
WeightDiffers	425 g	438 g
Sustainabilityidentical
Compliance certificates	RoHS	RoHS
Packaging data4 differ
Package widthDiffers	205 mm	200 mm
Package depthDiffers	270 mm	90 mm
Package heightDiffers	135 mm	200 mm
Package weightDiffers	1.15 kg	706 g
Package type	Box	Box
Packaging contentidentical
Cables includedKnown for one	LAN (RJ-45)	Unknown — not stated by the source
Mounting kitKnown for one	Yes	Unknown — not stated by the source
Screws included	Yes	Yes
ManualKnown for one	Yes	Unknown — not stated by the source
AC adapter includedKnown for one	Yes	Unknown — not stated by the source
Quick installation guide	Yes	Yes
Resource CD	Yes	Yes
Number of camerasKnown for one	Unknown — not stated by the source	1
Technical detailsidentical
Iris	Yes	Yes
Number of video streams	2	2
Back light compensation methodKnown for one	Unknown — not stated by the source	Yes
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	85258900
Master (outer) case widthKnown for one	Unknown — not stated by the source	405 mm
Master (outer) case lengthKnown for one	Unknown — not stated by the source	367 mm
Master (outer) case heightKnown for one	Unknown — not stated by the source	405 mm
Master (outer) case gross weightKnown for one	Unknown — not stated by the source	12.3 kg
Products per master (outer) caseKnown for one	Unknown — not stated by the source	16 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
