Product comparison · 2 security cameras

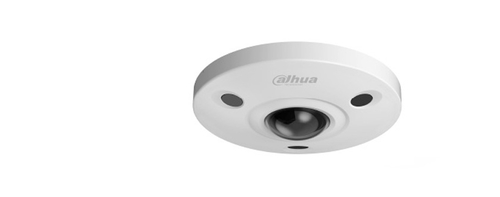

Dahua Technology DH-IPC-EBW86A0N security camera Dome IP security camera Indoor & outdoor vs Dahua Technology DH-IPC-EBW86A0N-I security camera Dome IP security camera Indoor & outdoor

62specifications compared
0differ
62identical
5known for one product only

Side by side

Differences highlightedShow differences only

Comparison of DH-IPC-EBW86A0N, DH-IPC-EBW86A0N-I
67 specifications	A Dahua Technology DH-IPC-EBW86A0N security camera Dome IP security camera Indoor & outdoor Model DH-IPC-EBW86A0N View product	B Dahua Technology DH-IPC-EBW86A0N-I security camera Dome IP security camera Indoor & outdoor Model DH-IPC-EBW86A0N-I View product
Performanceidentical
Type	IP security camera	IP security camera
Placement supported	Indoor & outdoor	Indoor & outdoor
Connectivity technology	Wired	Wired
Wide Dynamic Range (WDR)	Yes	Yes
Day/night mode	Yes	Yes
Infrared (IR) cut-off filter	Yes	Yes
Alarm input/output	Yes	Yes
CertificationKnown for one	Unknown — not stated by the source	FCC (SEFD1412194-A ) UL (E234884-A51-UL)
Designidentical
Form factor	Dome	Dome
Mounting type	Ceiling/wall	Ceiling/wall
Product colour	White	White
Housing material	Metal	Metal
Protection features	Vandal proof	Vandal proof
International Protection (IP) code	IP67	IP67
Cameraidentical
Minimum illumination	0.01 lx	0.01 lx
Lens viewing angle, horizontal	185°	185°
Lens viewing angle, vertical	185°	185°
Lens viewing angle, diagonal	185°	185°
White balance	Auto	Auto
Camera shutter type	Electronic	Electronic
Camera shutter speed	1/3(4) ~ 1/100.000 s	1/3(4) ~ 1/100.000 s
Image sensoridentical
Sensor type	CMOS	CMOS
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")	25.4 / 1.8 mm (1 / 1.8")
Progressive scan	Yes	Yes
Lens systemidentical
Zoom capability	Yes	Yes
Digital zoom	16x	16x
Maximum aperture number	2	2
Fixed focal length	1.55 mm	1.55 mm
Night visionidentical
Night visionKnown for one	Unknown — not stated by the source	Yes
Night vision distanceKnown for one	Unknown — not stated by the source	10 m
LED type	IR	IR
Number of illumination LEDs	3	3
Videoidentical
Maximum resolution	3072 x 2048 pixels	3072 x 2048 pixels
Total megapixels	6 MP	6 MP
Video compression formats	H.264, M-JPEG	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 2048	1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 2048
Supported video modes	1080p	1080p
Frame rate	30 fps	30 fps
Noise reduction	Yes	Yes
Automatic gain control	Yes	Yes
Privacy masking	Yes	Yes
Audioidentical
Signal-to-Noise Ratio (SNR)	50 dB	50 dB
Networkidentical
Ethernet LAN	Yes	Yes
Wi-Fi	No	No
Supported network protocols	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Number of users	20 user(s)	20 user(s)
Quality of Service (QoS) support	Yes	Yes
Storageidentical
Built-in HDD	No	No
Maximum memory card size	64 GB	64 GB
Internal memory	1024 MB	1024 MB
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
Interface	RJ-45	RJ-45
Securityidentical
Video motion detection	Yes	Yes
Motion sensorKnown for one	Yes	Unknown — not stated by the source
Poweridentical
Power source type	PoE	PoE
Power consumption (max)	11 W	11 W
Power over Ethernet (PoE)	Yes	Yes
Operational conditionsidentical
Operating temperature (T-T)	-30 - 60 °C	-30 - 60 °C
Storage temperature (T-T)	-30 - 60 °C	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90%	0 - 90%
Storage relative humidity (H-H)	0 - 90%	0 - 90%
Weight & dimensionsidentical
Depth	50.7 mm	50.7 mm
Diameter	15 cm	15 cm
Weight	580 g	580 g
Packaging contentidentical
Number of cameras	1	1
Packaging dataidentical
Package weightKnown for one	860 g	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
