Product comparison · 2 power distribution units (pdus)

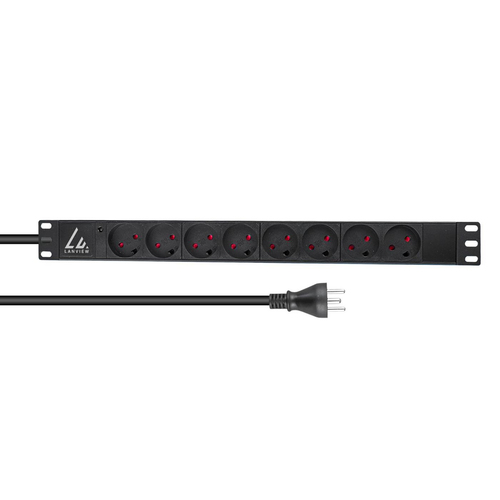

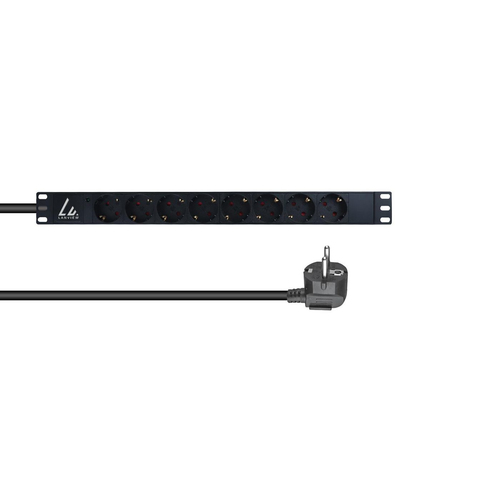

Lanview LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black vs Lanview LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black

Key differences

Power plug
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:Type K
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:Type F
AC outlet types
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:Type K
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:Type F
Cable length
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:2 m
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:3 m
Maximum current
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:13 A
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:16 A
Width
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:500 mm
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:535 mm
Depth
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:80 mm
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:72.9 mm
Height
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:60 mm
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:74 mm
Package width
- LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:500 mm
- LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black:535 mm

Differences highlightedShow differences only

Comparison of LVR-2MDK-LIC-DK8, LVR-3MSCH-LIC-SCH8
23 specifications	A Lanview LVR-2MDK-LIC-DK8 power distribution unit (PDU) 8 AC outlet(s) 1U Black Model LVR-2MDK-LIC-DK8 View product	B Lanview LVR-3MSCH-LIC-SCH8 power distribution unit (PDU) 8 AC outlet(s) 1U Black Model LVR-3MSCH-LIC-SCH8 View product
Designidentical
PDU types	Basic	Basic
Type	Single-phase	Single-phase
Rack mounting	Yes	Yes
Rack capacity	1U	1U
Mounting	Horizontal	Horizontal
Product colour	Black	Black
Ports & interfaces2 differ
AC outlets quantity	8 AC outlet(s)	8 AC outlet(s)
Power plugDiffers	Type K	Type F
AC outlet typesDiffers	Type K	Type F
Features1 differ
LED indicators	Power	Power
Cable lengthDiffers	2 m	3 m
Power1 differ
Nominal input voltage	230 V	230 V
Maximum currentDiffers	13 A	16 A
Nominal output voltage	230 V	230 V
Weight & dimensions3 differ
WidthDiffers	500 mm	535 mm
DepthDiffers	80 mm	72.9 mm
HeightDiffers	60 mm	74 mm
Weight	1.1 kg	1.1 kg
Size (imperial)	48.3 cm (19")	48.3 cm (19")
Packaging data3 differ
Package weight	1.2 kg	1.2 kg
Package widthDiffers	500 mm	535 mm
Package depthDiffers	80 mm	72.9 mm
Package heightDiffers	60 mm	74 mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
