Product comparison · 2 power adapters & inverters

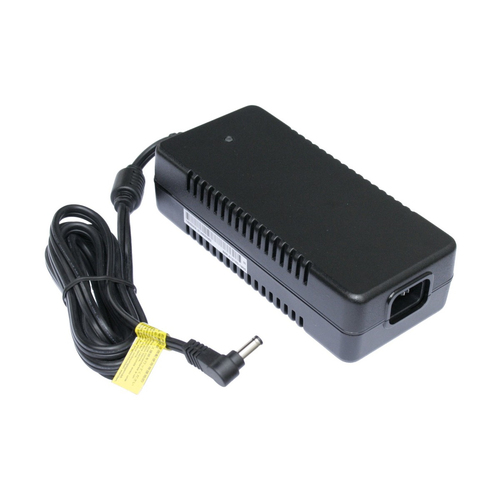

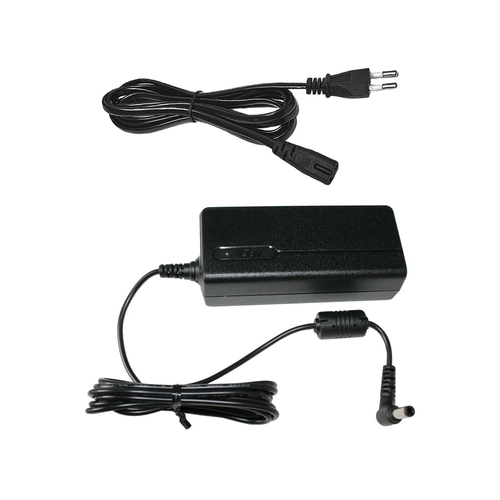

Shuttle PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs vs Shuttle PE65 power supply for All In One, Slim and Nano PCs

16specifications compared
7differ
9identical
11known for one product only

Key differences

Input voltage
- PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs:90 - 260 V
- PE65 power supply for All In One, Slim and Nano PCs:100 - 240 V
Maximum input voltage
- PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs:260 V
- PE65 power supply for All In One, Slim and Nano PCs:240 V
Input frequency
- PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs:47 - 63 Hz
- PE65 power supply for All In One, Slim and Nano PCs:50/60 Hz
Output power
- PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs:150 W
- PE65 power supply for All In One, Slim and Nano PCs:65 W
Output current
- PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs:7.89 A
- PE65 power supply for All In One, Slim and Nano PCs:3.42 A
Operating temperature (T-T)
- PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs:-20 - 70 °C
- PE65 power supply for All In One, Slim and Nano PCs:5 - 40 °C

Side by side

Differences highlightedShow differences only

Comparison of PA1501, PE65
27 specifications	A Shuttle PA1501 External 150 Watt power supply (Operating Temperature: -20 ... +70 °C) for industrial Box-PCs Model PA1501 View product	B Shuttle PE65 power supply for All In One, Slim and Nano PCs Model PE65 View product
Features6 differ
Purpose	PC	PC
Power supply type	Indoor	Indoor
Power current type	AC-to-DC	AC-to-DC
Input voltageDiffers	90 - 260 V	100 - 240 V
Maximum input voltageDiffers	260 V	240 V
Input frequencyDiffers	47 - 63 Hz	50/60 Hz
Input currentKnown for one	Unknown — not stated by the source	1.6 A
Output powerDiffers	150 W	65 W
Output voltage	19 V	19 V
Output currentDiffers	7.89 A	3.42 A
Brand compatibility	Shuttle	Shuttle
CompatibilityDiffers	BPCWL02, BPCAL02	XS35/XS36-Series, DS47, DS407T, DS437(T), DS57U(x), DS67U(x), DS68U(x), DS77U(x), DS10U(x), DS20U(x)(V2), DL10J, DL20N(6)V2, XC60J, NC01U(x), NC02U(x), NC03U(x), NC10U(x), NC40U(x), NS02A/E(V2), P20U, P22U, P25N, P51U(3), P52U(3), P90U(x), P92U(x), X50V2(x)-X50V8(x), KD20, KD21, KD22, KS10
Designidentical
Product colour	Black	Black
Cooling typeKnown for one	Unknown — not stated by the source	Passive
Operational conditions1 differ
Operating temperature (T-T)Differs	-20 - 70 °C	5 - 40 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	10 - 90%
Certificatesidentical
Compliance certificatesKnown for one	Unknown — not stated by the source	CE, WEEE
Sustainabilityidentical
Sustainability complianceKnown for one	Unknown — not stated by the source	Yes
Weight & dimensionsidentical
WidthKnown for one	Unknown — not stated by the source	110.5 mm
DepthKnown for one	Unknown — not stated by the source	48.5 mm
HeightKnown for one	Unknown — not stated by the source	31.5 mm
WeightKnown for one	Unknown — not stated by the source	210 g
Packaging contentidentical
Cables included	AC	AC
Quick installation guideKnown for one	Unknown — not stated by the source	Yes
Quantity per pack	1 pc(s)	1 pc(s)
Power adapter includedKnown for one	Yes	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) code	85044083	85044083

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
