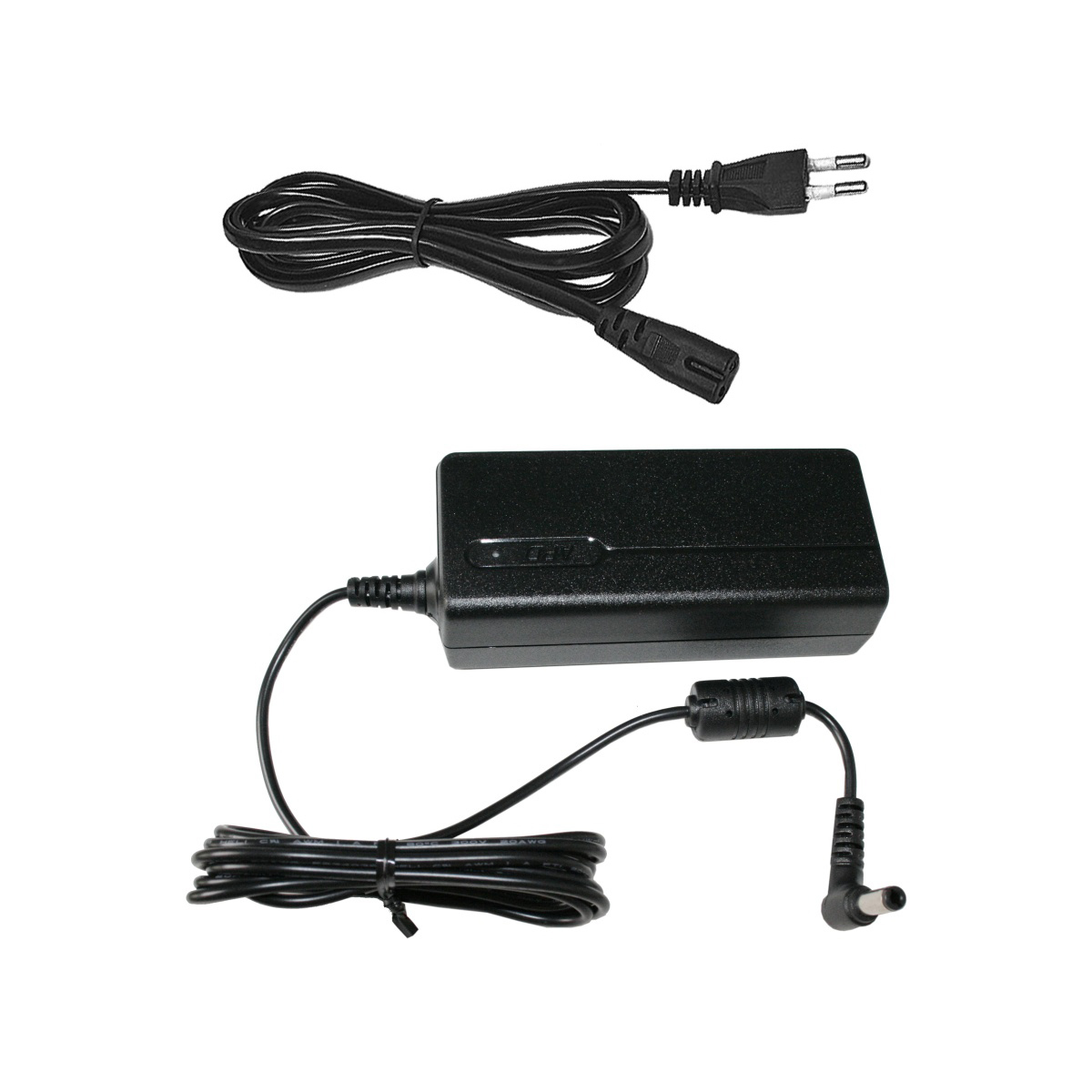

PE65 power supply for All In One, Slim and Nano PCs
Model PE65EAN 4046047104147
26 specifications
- Weight210 g
- ColourBlack
- PurposePC
- Operating temperature (T-T)5 - 40 °C
- Width110.5 mm
Overview
- Weight
- 210 g
- Colour
- Black
- Purpose
- PC
- Operating temperature (T-T)
- 5 - 40 °C
- Width
- 110.5 mm
- Brand
- Shuttle
- Category
- Power Adapters & Inverters
- Model
- PE65
- Part number
- PE65
- EAN / UPC
- 4046047104147
- Also known as
- Shuttle PE65 power supply for All In One, Slim and Nano PCs
Specifications
26 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Input voltage | 100 - 240 V |
| Maximum input voltage | 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.6 A |
| Output power | 65 W |
| Output voltage | 19 V |
| Output current | 3.42 A |
| Brand compatibility | Shuttle |
| Compatibility | XS35/XS36-Series, DS47, DS407T, DS437(T), DS57U(x), DS67U(x), DS68U(x), DS77U(x), DS10U(x), DS20U(x)(V2), DL10J, DL20N(6)V2, XC60J, NC01U(x), NC02U(x), NC03U(x), NC10U(x), NC40U(x), NS02A/E(V2), P20U, P22U, P25N, P51U(3), P52U(3), P90U(x), P92U(x), X50V2(x)-X50V8(x), KD20, KD21, KD22, KS10 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110.5 mm |
| Depth | 48.5 mm |
| Height | 31.5 mm |
| Weight | 210 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044083 |
