Product comparison · 2 pcs/workstations

Viewsonic VOT120 PC Intel Pentium Mobile N270 vs Viewsonic VOT125B_7HUS_02 PC Intel® Celeron® SU2300

Add a product
  • 94specifications compared
  • 38differ
  • 56identical
  • 24known for one product only

Key differences

  • Processor family
    • Intel Pentium Mobile
    • Intel® Celeron®
  • Processor model
    • N270
    • SU2300
  • Processor cores
    • 1
    • 2
  • Processor frequency
    • 1.6 GHz
    • 1.2 GHz
  • Processor cache
    • 0.512 MB
    • 1 MB
  • Processor front side bus
    • 533 MHz
    • 800 MHz
  • FSB Parity
    • No
    • Yes
  • Processor operating modes
    • 32-bit
    • 64-bit

Side by side

Differences highlightedShow differences only
118 specifications
A

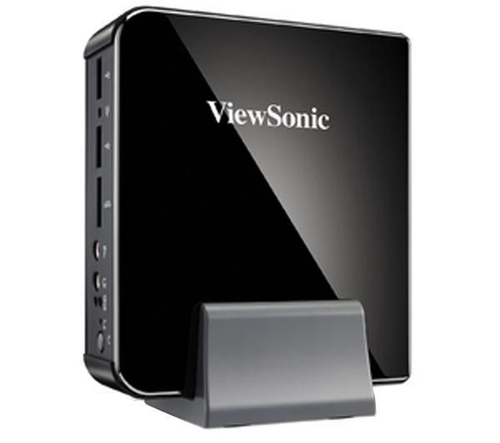

Viewsonic

VOT120 PC Intel Pentium Mobile N270

Model VOT120

View product
B

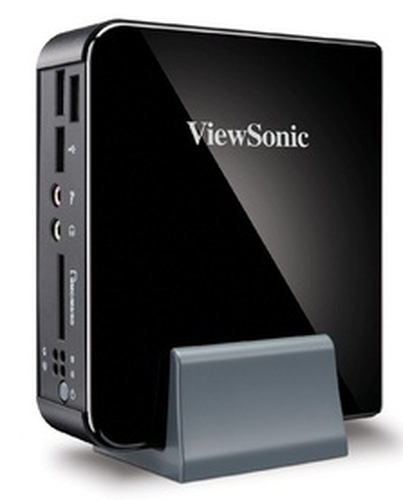

Viewsonic

VOT125B_7HUS_02 PC Intel® Celeron® SU2300

Model VOT125B_7HUS_02

View product
Processor16 differ
Processor manufacturerIntelIntel
Processor familyDiffersIntel Pentium MobileIntel® Celeron®
Processor modelDiffersN270SU2300
Processor coresDiffers12
Processor threads22
Processor frequencyDiffers1.6 GHz1.2 GHz
Processor cacheDiffers0.512 MB1 MB
Processor cache typeL2L2
Processor front side busDiffers533 MHz800 MHz
Bus typeFSBFSB
FSB ParityDiffersNoYes
Processor lithography45 nm45 nm
Processor operating modesDiffers32-bit64-bit
Processor seriesDiffersIntel Atom N200 SeriesIntel Celeron Processor SU2000 Series for Mobile
Processor codenameDiffersDiamondvillePenryn
Thermal Design Power (TDP)Differs2.5 W10 W
TjunctionDiffers90 °C100 °C
Number of processors installed11
Processor socketDiffersSocket F (1207)BGA 956
Number of Processing Die TransistorsDiffers47 M410 M
Processing Die sizeDiffers26 mm²107 mm²
CPU multiplier (bus/core ratio)Known for one12
Maximum number of SMP processors11
SteppingDiffersC0R0
ECC supported by processorNoNo
PlatformKnown for onePC
Memory1 differ
Internal memoryDiffers1 GB2 GB
Internal memory typeDDR2-SDRAMDDR2-SDRAM
Memory clock speedKnown for one800 MHz
Storage2 differ
Total storage capacityDiffers160 GB250 GB
Optical drive typeNoNo
Number of HDDs installed11
HDD interfaceSATASATA
Card reader integratedDiffersNoYes
HDD speedKnown for one5400 RPM
Compatible memory cardsKnown for oneMemory Stick (MS), MMC, SD
Graphicsidentical
On-board graphics cardKnown for oneYes
Graphics card familyKnown for oneIntel
Performance2 differ
Product typeDiffersPCMini PC
Motherboard chipsetDiffersIntel® 945GIntel® GS40 Express
Network1 differ
Ethernet LANYesYes
Cabling technologyDiffers10/100Base-T(X)10/100/1000Base-T(X)
Wi-FiYesYes
BluetoothKnown for oneYes
Bluetooth versionKnown for one2.0+EDR
Ethernet LAN data ratesKnown for one10,100,1000 Mbit/s
Wake-on-LAN readyKnown for oneYes
Networking featuresKnown for oneGigabit Ethernet
Ports & interfaces2 differ
USB 2.0 ports quantity44
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity00
HDMI ports quantityDiffers01
Ethernet LAN (RJ-45) ports11
Headphone outputs11
Microphone inYesYes
VGA (D-Sub) ports quantityDiffers10
DVI portYesYes
PS/2 ports quantity00
Firewire (IEEE 1394) ports00
eSATA ports quantityKnown for one1
DC-in jackYesYes
Serial ports quantity00
Parallel ports quantity00
Power1 differ
Power supply typeDiffers19V DC; 30W adapterAC/DC
Power supplyKnown for one65 W
Design1 differ
Chassis typeDiffersSFFSmall Desktop
Cable lock slotKnown for oneYes
Cable lock slot typeKnown for oneKensington
Product colourBlackBlack
Software1 differ
Operating system installedDiffersWindows XP Home EditionWindows 7 Home Premium
Mac compatibilityKnown for oneNo
Drivers includedKnown for oneYes
Displayidentical
Display includedNoNo
Processor special features7 differ
Embedded options availableDiffersYesNo
Enhanced Intel SpeedStep TechnologyYesYes
Execute Disable BitDiffersYesNo
Idle StatesKnown for oneNo
Intel 64DiffersNoYes
Intel Clear Video TechnologyNoNo
Intel Demand Based SwitchingNoNo
Intel Dual Display Capable TechnologyNoNo
Intel Enhanced Halt StateNoNo
Intel FDI TechnologyNoNo
Intel Fast Memory AccessNoNo
Intel Flex Memory AccessNoNo
Intel Rapid Storage TechnologyNoNo
Intel Trusted Execution TechnologyNoNo
Intel VT-x with Extended Page Tables (EPT)NoNo
Intel Virtualization Technology (VT-x)DiffersNoYes
Intel Virtualization Technology for Directed I/O (VT-d)NoNo
Intel® AES New Instructions (Intel® AES-NI)NoNo
Intel® Clear Video HD Technology (Intel® CVT HD)NoNo
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)NoNo
Intel® InTru™ 3D TechnologyNoNo
Intel® Insider™NoNo
Intel® Wireless Display (Intel® WiDi)NoNo
Processor ARK IDDiffers3633142779
Processor codeDiffersSLB73SLGSB
Processor package size22 x 22 mm22 x 22 mm
Supported instruction setsKnown for oneSSE2, SSE3
Thermal Monitoring TechnologiesYesYes
Intel® Turbo Boost TechnologyNoNo
Intel® Hyper Threading Technology (Intel® HT Technology)DiffersYesNo
Intel® Quick Sync Video TechnologyNoNo
Intel® My WiFi Technology (Intel® MWT)NoNo
Intel® Anti-Theft Technology (Intel® AT)NoNo
Conflict-Free processorNoNo
Audio1 differ
Audio systemDiffersHDAHD
Weight & dimensionsidentical
Width39 mm39 mm
Depth115 mm115 mm
Height130 mm130 mm
Weight550 g550 g
Packaging data2 differ
Package dimensions (WxDxH)Differs390 x 488 x 308 mm267 x 138 x 222 mm
Package weightDiffers7.5 kg1.72 kg
Certificates1 differ
CertificationDiffersCUL/FCCFCC, UL, cUL
Compliance industry standardsKnown for oneIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operational conditionsidentical
Operating temperature (T-T)Known for one0 - 40 °C
Operating relative humidity (H-H)Known for one0 - 90%
Operating altitudeKnown for one0 - 3048 m

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
