Product comparison · 2 network switches

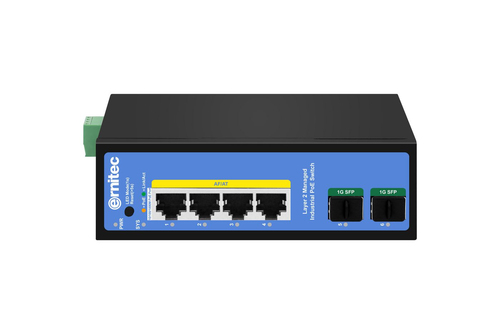

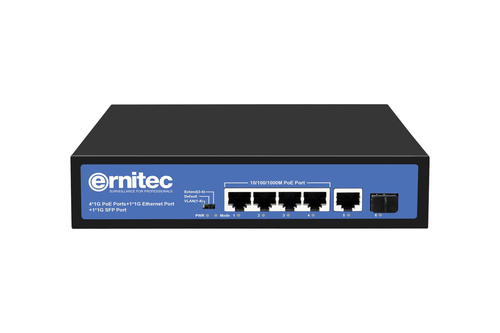

Ernitec ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) vs Ernitec ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

24specifications compared
12differ
12identical
36known for one product only

Key differences

Switch type
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):Managed
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):Unmanaged
Networking standards
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):IEEE 802.3u
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):IEEE 802.3
MAC address table
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):8000 entries
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):2000 entries
Switching capacity
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):24 Gbit/s
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):12 Gbit/s
LED indicators
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):PoE
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):Power
Power over Ethernet (PoE) power per port
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):15.4 W
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):15 W
Width
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):190 mm
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):245 mm
Depth
- ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):245 mm
- ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):190 mm

Side by side

Differences highlightedShow differences only

Comparison of ELECTRA-IM04-1GB, ELECTRA-U04-1GB-60W
60 specifications	A Ernitec ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Model ELECTRA-IM04-1GB View product	B Ernitec ELECTRA-U04-1GB-60W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Model ELECTRA-U04-1GB-60W View product
Management features1 differ
Switch typeDiffers	Managed	Unmanaged
Switch layerKnown for one	L2/L2+	Unknown — not stated by the source
Web-based managementKnown for one	Yes	Unknown — not stated by the source
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity	4	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantityKnown for one	2	Unknown — not stated by the source
Console portKnown for one	RJ-45	Unknown — not stated by the source
Combo SFP ports quantityKnown for one	Unknown — not stated by the source	1
Network1 differ
Networking standardsDiffers	IEEE 802.3u	IEEE 802.3
Port mirroringKnown for one	Yes	Unknown — not stated by the source
IP routingKnown for one	Yes	Unknown — not stated by the source
Flow control support	Yes	Yes
VLAN support	Yes	Yes
Number of VLANsKnown for one	256	Unknown — not stated by the source
Full duplexKnown for one	Unknown — not stated by the source	Yes
Half duplexKnown for one	Unknown — not stated by the source	Yes
Auto MDI/MDI-XKnown for one	Unknown — not stated by the source	Yes
Data transmission2 differ
MAC address tableDiffers	8000 entries	2000 entries
Switching capacityDiffers	24 Gbit/s	12 Gbit/s
Forwarding rateKnown for one	17.85 Mpps	Unknown — not stated by the source
Store-and-forwardKnown for one	Yes	Unknown — not stated by the source
Static routeKnown for one	Yes	Unknown — not stated by the source
Jumbo frames supportKnown for one	Yes	Unknown — not stated by the source
Transmission methodKnown for one	Unknown — not stated by the source	Store-And-Forward
Packet forwardingKnown for one	Unknown — not stated by the source	Yes
Design1 differ
Housing material	Metal	Metal
Reset buttonKnown for one	Yes	Unknown — not stated by the source
LED indicatorsDiffers	PoE	Power
On/off switchKnown for one	Yes	Unknown — not stated by the source
Rack mountingKnown for one	Unknown — not stated by the source	No
Number of fansKnown for one	Unknown — not stated by the source	0 fan(s)
Performanceidentical
Firmware upgradeableKnown for one	Yes	Unknown — not stated by the source
TelnetKnown for one	Yes	Unknown — not stated by the source
Fanless	Yes	Yes
Plug and PlayKnown for one	Unknown — not stated by the source	Yes
Poweridentical
Surge protectionKnown for one	Yes	Unknown — not stated by the source
Surge protection voltageKnown for one	6 kV	Unknown — not stated by the source
Input voltageKnown for one	Unknown — not stated by the source	100-240 V
Power consumption (max)Known for one	Unknown — not stated by the source	3.7 W
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet (PoE) type supported	PoE+	PoE+
Power over Ethernet (PoE) ports quantity	4	4
Power over Ethernet (PoE) power per portDiffers	15.4 W	15 W
Total Power over Ethernet (PoE) budgetKnown for one	Unknown — not stated by the source	60 W
Other featuresidentical
MaterialKnown for one	Metal	Unknown — not stated by the source
Warranty periodKnown for one	5 year(s)	Unknown — not stated by the source
Cable lengthKnown for one	Unknown — not stated by the source	250 m
Packaging contentKnown for one	Unknown — not stated by the source	switch 1pcs, power cord 1pcs, instruction manual 1pcs,certificate of qualification 1pcs
Weight & dimensions3 differ
WidthDiffers	190 mm	245 mm
DepthDiffers	245 mm	190 mm
Height	60 mm	60 mm
WeightDiffers	880 g	630 g
Packaging contentidentical
Manual	Yes	Yes
Cables includedKnown for one	Unknown — not stated by the source	Power
Packaging data3 differ
Mounting brackets includedKnown for one	Yes	Unknown — not stated by the source
Package widthDiffers	190 mm	245 mm
Package depthDiffers	245 mm	190 mm
Package height	60 mm	60 mm
Package weightDiffers	1.06 kg	930 g
Operational conditionsidentical
Operating temperature (T-T)Known for one	Unknown — not stated by the source	0 - 40 °C

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
