Product comparison · 2 network switches

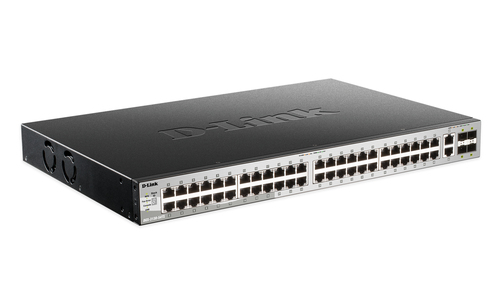

D-Link DGS-3130-54PS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey vs D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey

Add a product
  • 69specifications compared
  • 10differ
  • 59identical
  • 2known for one product only

Key differences

  • Number of fans
    • 4 fan(s)
    • 2 fan(s)
  • Noise level
    • 54.2 dB
    • 51.9 dB
  • Mean time between failures (MTBF)
    • 356876 h
    • 478258 h
  • Power consumption (max)
    • 487.26 W
    • 50.62 W
  • Power over Ethernet (PoE)
    • Yes
    • No
  • Heat dissipation
    • 1662.6 BTU/h
    • 172.72 BTU/h
  • Depth
    • 350 mm
    • 290 mm
  • Weight
    • 5.14 kg
    • 3.72 kg

Side by side

Differences highlightedShow differences only
71 specifications
A

D-Link

DGS-3130-54PS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

Model DGS-3130-54PS

View product
B

D-Link

DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey

Model DGS-3130-54TS

View product
Management featuresidentical
Switch typeManagedManaged
Switch layerL3L3
Quality of Service (QoS) supportYesYes
Web-based managementYesYes
ARP inspectionYesYes
MIB supportRFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFCRFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity4848
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity00
Installed SFP+ modules quantity00
SFP+ module slots quantity44
Fiber optic connectorSFP+SFP+
USB 2.0 ports quantity11
Power connectorAC-in jackAC-in jack
Network1 differ
Networking standardsDiffersIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3xIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
10G supportYesYes
Copper ethernet cabling technology10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYesYes
Flow control supportYesYes
Head-of-line (HOL) blockingYesYes
Link aggregationYesYes
Spanning tree protocolYesYes
VLAN supportYesYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLANPrivate VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs40004000
Data transmissionidentical
MAC address table16384 entries16384 entries
Switching capacity216 Gbit/s216 Gbit/s
Forwarding rate161 Mpps161 Mpps
Jumbo frames supportYesYes
Jumbo frames90009000
Packet buffer memory4 MB4 MB
Security1 differ
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP clientDHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)YesYes
Access Control List (ACL) rules20482048
IGMP snoopingYesYes
AuthenticationDiffersMAC-based authentication, Port-based authentication, Web-based authenticationGuest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protectionYesYes
DoS attack preventionYesYes
Loop protectionYesYes
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)SP, WRR+SP, Weighted Round Robin (WRR)
Root protectionYesYes
SSH/SSL supportYesYes
Security algorithmsSNMP, SNMPv3, SSH-2, SSL/TLSSNMP, SNMPv3, SSH-2, SSL/TLS
Multicast featuresidentical
Multicast supportYesYes
Protocolsidentical
Routing protocolsRIPRIP
Design1 differ
StackableYesYes
Product colourBlack, GreyBlack, Grey
LED indicatorsYesYes
Number of fansDiffers4 fan(s)2 fan(s)
SafetyCB, cUL, BSMI, CCCCB, cUL, BSMI, CCC
Performance2 differ
Physical stacking (units)99
Virtual stacking (units)3232
Noise levelDiffers54.2 dB51.9 dB
Mean time between failures (MTBF)Differs356876 h478258 h
Power1 differ
Redundant power supply (RPS) supportYesYes
AC input voltage100 - 240 V100 - 240 V
AC input frequency50 - 60 Hz50 - 60 Hz
Power consumption (max)Differs487.26 W50.62 W
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)DiffersYesNo
Power over Ethernet plus (PoE+) ports quantityKnown for one48
Total Power over Ethernet (PoE) budgetKnown for one370 W
Operational conditions1 differ
Operating temperature (T-T)0 - 50 °C0 - 50 °C
Storage temperature (T-T)-40 - 70 °C-40 - 70 °C
Operating relative humidity (H-H)10 - 90%10 - 90%
Storage relative humidity (H-H)5 - 90%5 - 90%
Heat dissipationDiffers1662.6 BTU/h172.72 BTU/h
Weight & dimensions2 differ
Width440 mm440 mm
DepthDiffers350 mm290 mm
Height44 mm44 mm
WeightDiffers5.14 kg3.72 kg
Certificatesidentical
CertificationFCC A, CE A, VCCI A, IC, RCM, BSMI, CCCFCC A, CE A, VCCI A, IC, RCM, BSMI, CCC

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
