Product comparison · 2 network antennas

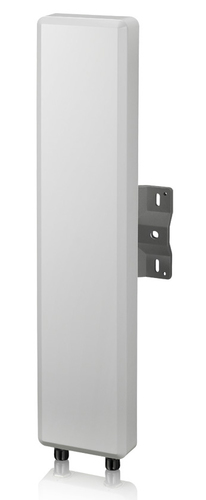

Zyxel ANT1314 network antenna Directional antenna 14 dBi vs Zyxel EXT 108

Key differences

Antenna gain level (max)
- ANT1314 network antenna Directional antenna 14 dBi:14 dBi
- EXT 108:8 dBi
Frequency band
- ANT1314 network antenna Directional antenna 14 dBi:2.4 GHz
- EXT 108:2.4 - 2.5 GHz
Product colour
- ANT1314 network antenna Directional antenna 14 dBi:White
- EXT 108:Grey, White
Height
- ANT1314 network antenna Directional antenna 14 dBi:145 mm
- EXT 108:520 mm
Weight
- ANT1314 network antenna Directional antenna 14 dBi:800 g
- EXT 108:337 g

Differences highlightedShow differences only

Comparison of ANT1314, EXT 108
16 specifications	A Zyxel ANT1314 network antenna Directional antenna 14 dBi Model ANT1314 View product	B Zyxel EXT 108 View product
Performance2 differ
Antenna gain level (max)Differs	14 dBi	8 dBi
Frequency bandDiffers	2.4 GHz	2.4 - 2.5 GHz
ImpedanceKnown for one	Unknown — not stated by the source	50 Ω
Features1 differ
Antenna connector typeKnown for one	Unknown — not stated by the source	N-type
Connector genderKnown for one	Unknown — not stated by the source	Female
PolarizationKnown for one	Unknown — not stated by the source	Vertical polarization
Voltage Standing Wave Ratio (VSWR)Known for one	Unknown — not stated by the source	2
Product colourDiffers	White	Grey, White
Power handlingKnown for one	Unknown — not stated by the source	50 W
Antenna typeKnown for one	Directional antenna	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)Known for one	Unknown — not stated by the source	-40 - 80 °C
Weight & dimensions2 differ
HeightDiffers	145 mm	520 mm
DiameterKnown for one	Unknown — not stated by the source	1.9 cm
WeightDiffers	800 g	337 g
WidthKnown for one	560 mm	Unknown — not stated by the source
DepthKnown for one	120 mm	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
