Product comparison · 2 network antennas

LevelOne 18dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor vs TP-Link TL-ANT2410MO network antenna Omni-directional antenna RP-SMA 10 dBi

Add a product
  • 16specifications compared
  • 15differ
  • 1identical
  • 24known for one product only

Key differences

  • Antenna gain level (max)
    • 18 dBi
    • 10 dBi
  • Frequency band
    • 2.4 GHz
    • 2.35-2.55 GHz
  • Horizontal beam width
    • 25.8°
    • 360°
  • Vertical beam width
    • 20.7°
    • 360°
  • Antenna type
    • Directional antenna
    • Omni-directional antenna
  • Antenna connector type
    • N-type
    • RP-SMA
  • Polarization
    • Vertical polarization
    • Dual polarization
  • Voltage Standing Wave Ratio (VSWR)
    • 2.0
    • 1.85

Side by side

Differences highlightedShow differences only
40 specifications
A

LevelOne

18dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor

Model WAN-2182

View product
B

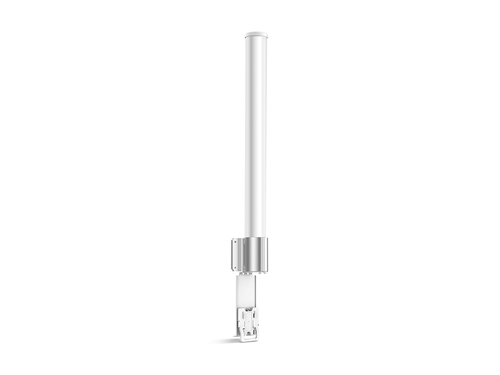

TP-Link

TL-ANT2410MO network antenna Omni-directional antenna RP-SMA 10 dBi

Model TL-ANT2410MO

View product
Performance4 differ
Antenna gain level (max)Differs18 dBi10 dBi
Frequency bandDiffers2.4 GHz2.35-2.55 GHz
Networking standardsKnown for oneIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance50 Ω50 Ω
Horizontal beam widthDiffers25.8°360°
Vertical beam widthDiffers20.7°360°
Features6 differ
Antenna typeDiffersDirectional antennaOmni-directional antenna
Antenna connector typeDiffersN-typeRP-SMA
PolarizationDiffersVertical polarizationDual polarization
Voltage Standing Wave Ratio (VSWR)Differs2.01.85
Product colourDiffersGreyWhite
Protection featuresKnown for oneDust resistant, Snow resistant, Water resistant
Survival wind speedDiffers180 km/h241 km/h
Maximum cable loss with connectorsKnown for one-10 dB
PurposeKnown for oneIndoor & outdoor
Connector genderKnown for oneFemale
MountingKnown for onePole
Operational conditionsidentical
Operating temperature (T-T)Known for one-30 - 60 °C
Operating relative humidity (H-H)Known for one0 - 95%
Weight & dimensions2 differ
WidthDiffers295 mm76 mm
DepthKnown for one330 mm
HeightDiffers35 mm800 mm
WeightKnown for one1.04 kg
Packaging data3 differ
Package widthDiffers333 mm155 mm
Package depthDiffers354 mm160 mm
Package heightDiffers84 mm1080 mm
Package weightKnown for one1.79 kg
Package typeKnown for oneBox
Packaging contentidentical
Mounting kitKnown for oneYes
Quick installation guideKnown for oneYes
Quantity per packKnown for one1 pc(s)
Logistics dataidentical
Harmonized System (HS) codeKnown for one85177100
Country of originKnown for oneTaiwan
Master (outer) case widthKnown for one460 mm
Master (outer) case lengthKnown for one690 mm
Master (outer) case heightKnown for one370 mm
Master (outer) case gross weightKnown for one19 kg
Products per master (outer) caseKnown for one10 pc(s)
Certificatesidentical
Compliance certificatesKnown for oneRoHS
CertificationKnown for oneWEEE

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
